4G Iot Gateway

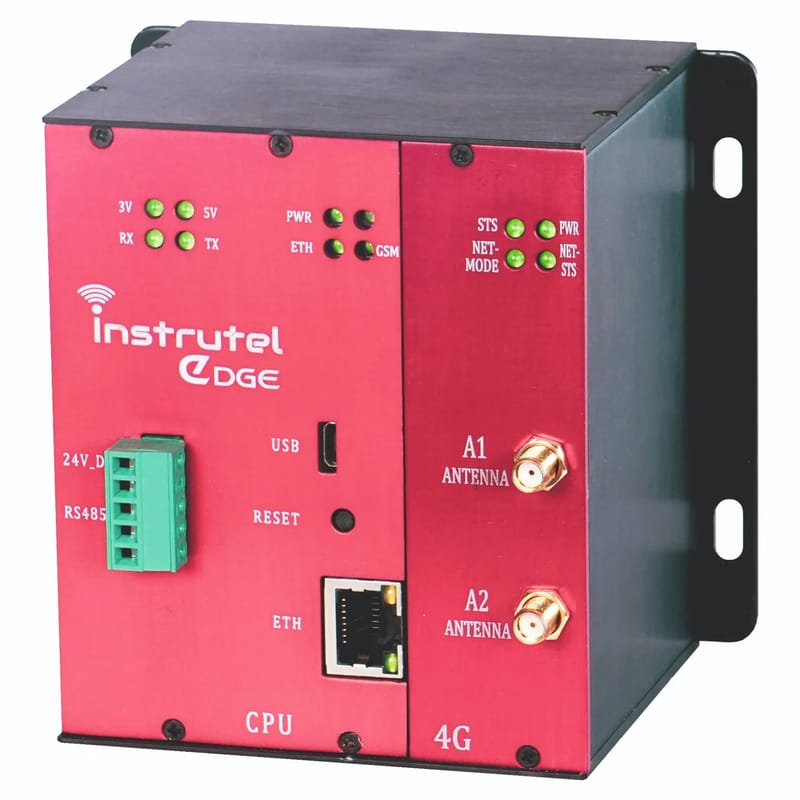

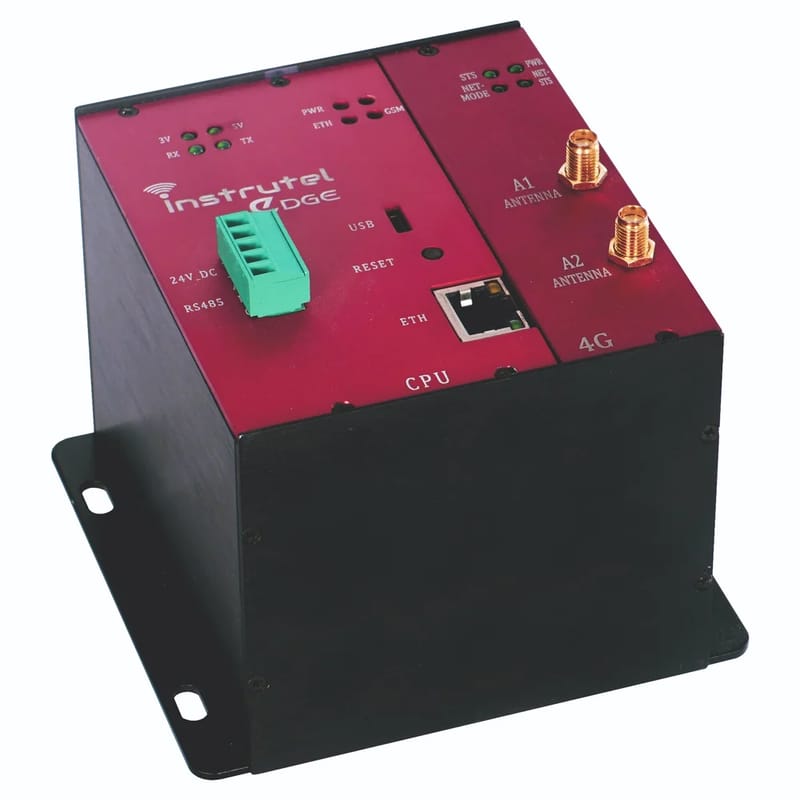

Network Type4GCommunication MethodBoth 4G & EthernetUsage/ApplicationIOTModel Name/NumbereDGE IoT GatewayCompatible BrandInstrutel Systems Pvt LtdColorREDPower Supply10WattsOperating Temperature70AntennaYESCountry of OriginMade in India eDGE(GSM) is an industrial device tailored for seamless data collection and transmission. It is suitable for factory environments and connects up to 30 instruments via GSM/GPRS (2G & 4G LTE), supporting 500 parameters. Featuring the MQTT protocol for cloud integration, it offers plug-and-play simplicity, low power consumption, and robust reliability in a compact, cost-effective design. Operating from 0C to +70C with a durable aluminum enclosure, the device ensures dependable performance in diverse conditions. Features Global supporting GSM/GPRS module 2G & 4G LTE. Can support up to 500 parameters. Can connect up to 30 instruments to eDGE. Cloud base support system. Plug and play. High reliability, Low cost compact design, Convenient to use.Specifications Cloud ConnectivityProtocols : MQTT.Data Format : JSON.Transmission : Transparent.Data Interval : 30 to 999 Seconds.PowerInput Voltage : 12 -24VDC.Consumption : 5 W Avg (low power device - draws less than 200mA).ConnectivityInput : RS485.Output : GSM/GPRS Module 2G & 4G LTE.EnvironmentalOperating Temperature : 0C to (+)70C.Storage Temperature : (-)40C to (+)85C.Operating Humidity : 0 to 95% (non-condensing).MechanicalDimensions(mm) : 110.0(L) X 105.0(W) X 80.0(H).Enclosure : : Aluminium HE30.
