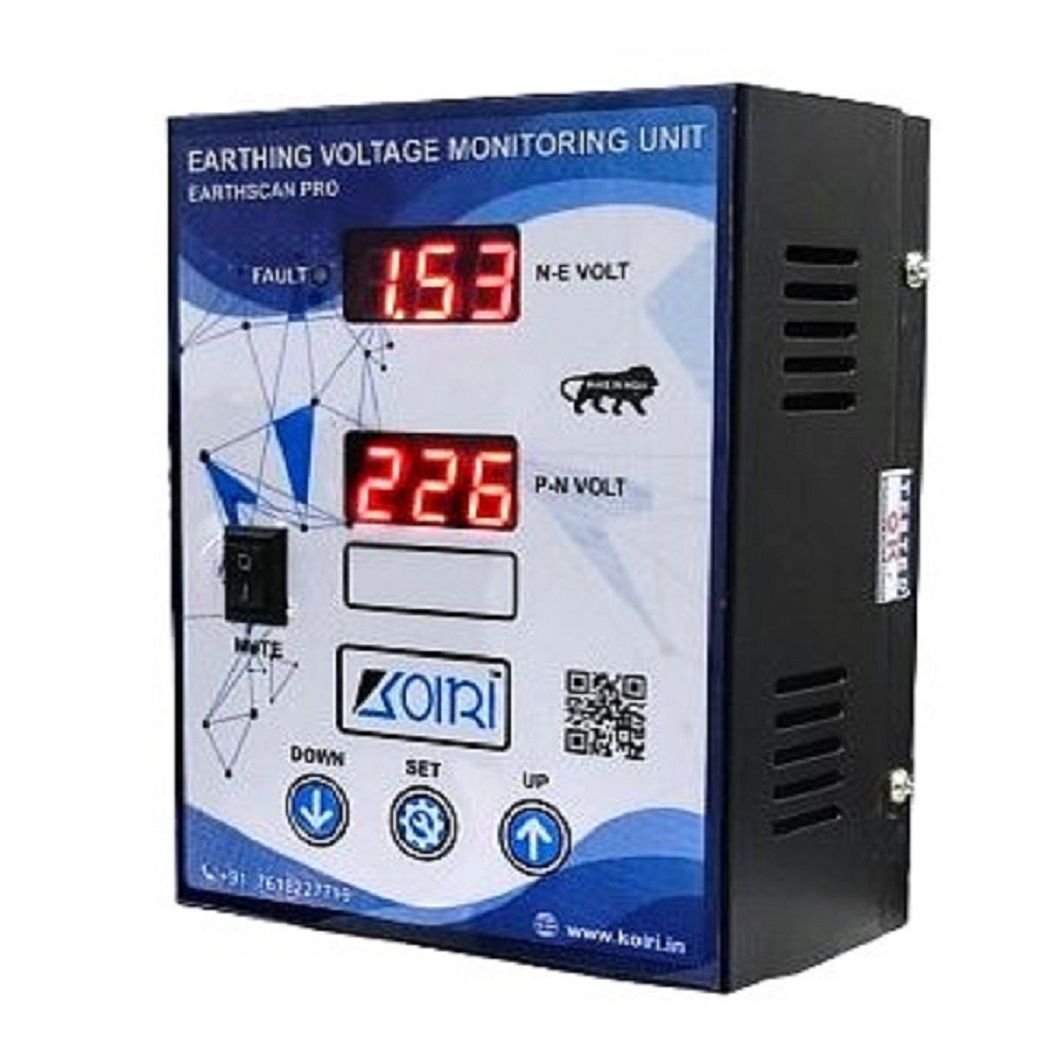

Earthing Voltage Monitoring Unit

An Earthing Voltage Monitoring Unit (EVMU) is a critical component of an Earthing Voltage Monitoring System. It serves the purpose of continuously monitoring the voltage between the neutral point of the electrical supply system and the earth ground. Here's an overview of its functionalities and features.

• Summery

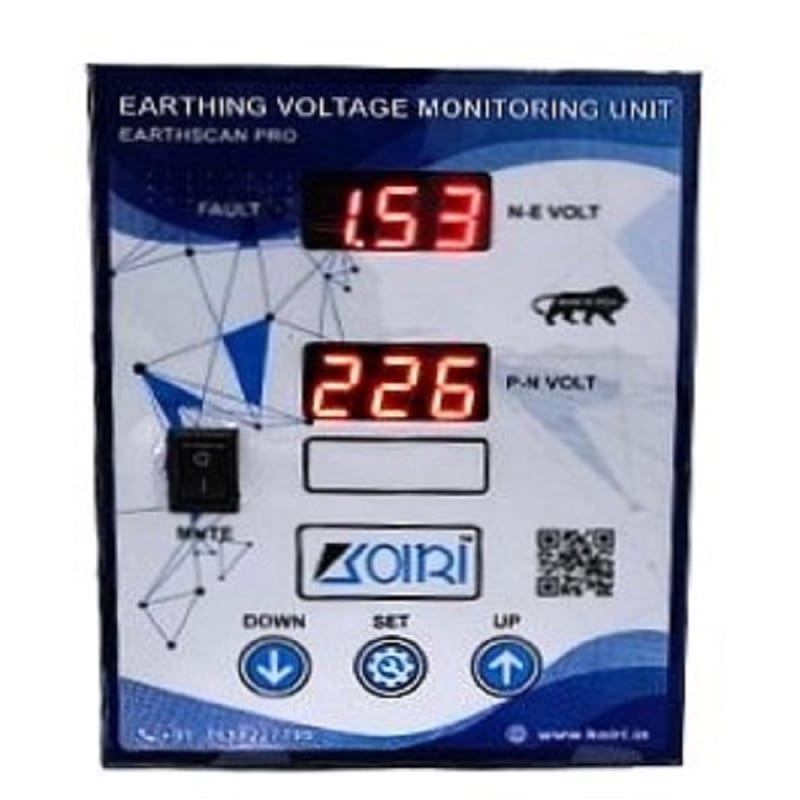

Earth Volt-Meter which will be used to detect the live Voltage between Neutral to Earth (N-E) as well as Phase to Neutral (P-N).

Live Voltage will be indicated by a 7-Segment display with the live indication of voltage either it is (Earth/Phase/Neutral).

Beep sound indicates that there is fault in the earthing and we can set the range of voltage as per our requirement

• Applications of EVMU

Verification It's important to use earth voltage measurement meters properly and to follow safety precautions, especially when dealing with electrical systems. Additionally, regular testing and maintenance of grounding systems are essential for ensuring the safety and reliability of electrical installations.

• USES OF EVMU

Electrical Safety

Grounding System Testing

Telecommunications

Diagnostic Tools

Utilities and Power Distribution

Lightning Protection Systems

Electrostatic Discharge (ESD) Control

Medical Diagnostic Center
