Digital Output Module 12 Channel with RS485 Modbus Supported

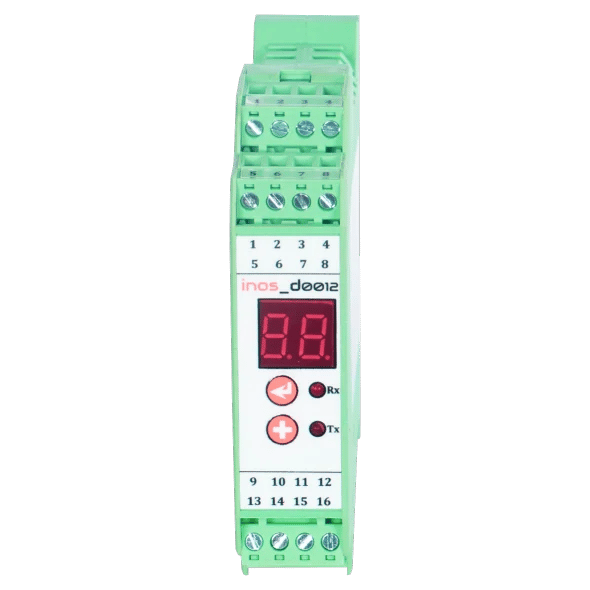

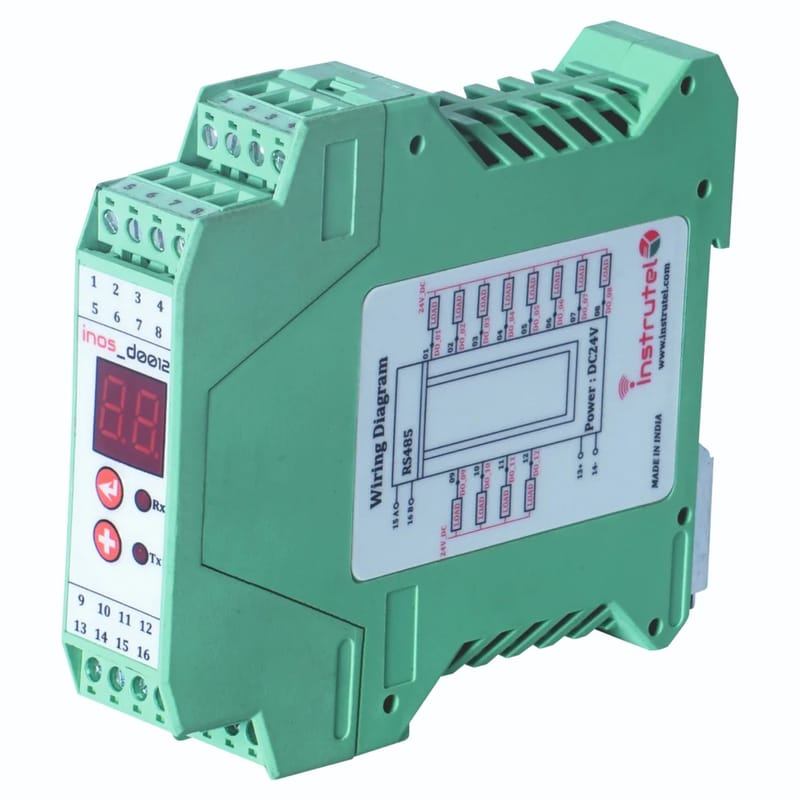

Minimum Order Quantity1 PieceNumber of Channels12Voltage24VBrandInstrutelMounting TypeDin RailCurrent0.5 ANetwork Speed4800bps-115200bpsModel Name/Numberinos_d1200Power5 WattWeight100gRated Voltage9V - 24VNo. Of Channels12Number Of Ports/Pins16Country of OriginMade in India The inos_d0012 controls external devices like actuators and relays, transmitting commands via RS485 using the Modbus protocol. It features 12 output channels, 24V DC input, and supports open collector (sinking) field signals. With optically isolated communication (2.5 kV DC), it also includes LED indicators for communication status and operates within a baud rate range of 4800 to 115200. SpecificationsNumber of output channels : 12.Power supply input : 24V DC(+/- 2V).Output signal : 0V DC.Field signal type : Open collector (Sinking).Output signal mode : Latch or One pulse.Field status : 2 digit seven segment display.Isolation type : Optically Isolated (2KV).Communication : Modbus RTU(Isolation 2.5kVDC).Communication status : Led indications Tx and Rx.Baud Rate : 4800 - 115200Data ConnectivityConnectivity Supported : Isolated RS485Protocol Supported : Modbus RTUCommunication Interface : 2 -wire TypeWatchdog Timer : System (5 sec)Pin Mapping1. Output - 012. Output - 023. Output - 034. Output - 045. Output - 056. Output - 067. Output - 078. Output - 089. Output - 0910. Output - 1011. Output - 1112. Output - 1213. DC24V(+)14. DC24V(-)15. RS485(A)16. RS485(B)MechanicalDimensions : 23.0 (L) X 100.0(W) X 115.0(H)Enclosure : Polyamide (PA66)Weight : 150g
