Product Description:

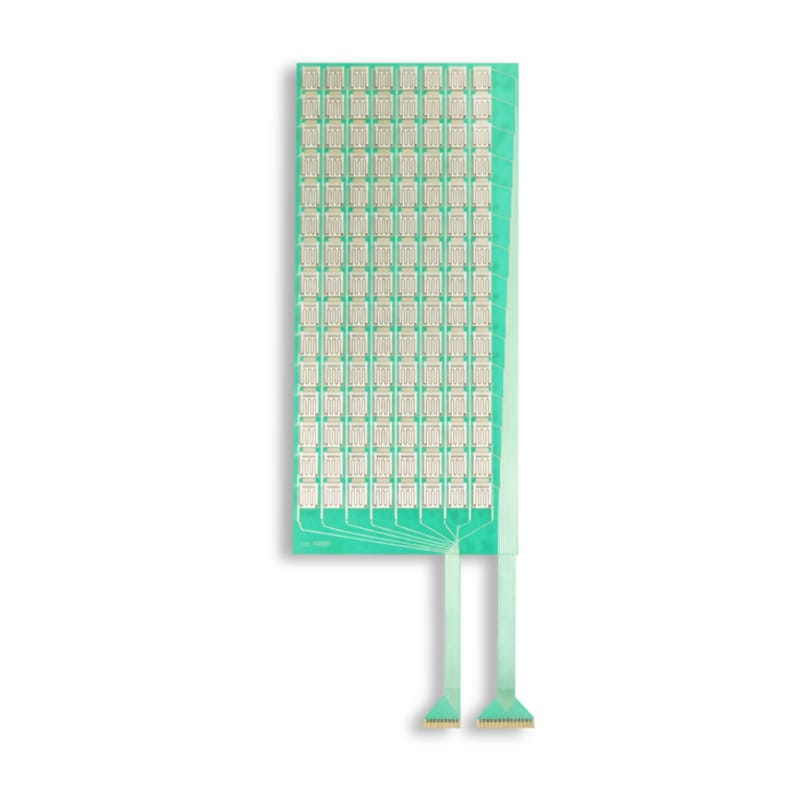

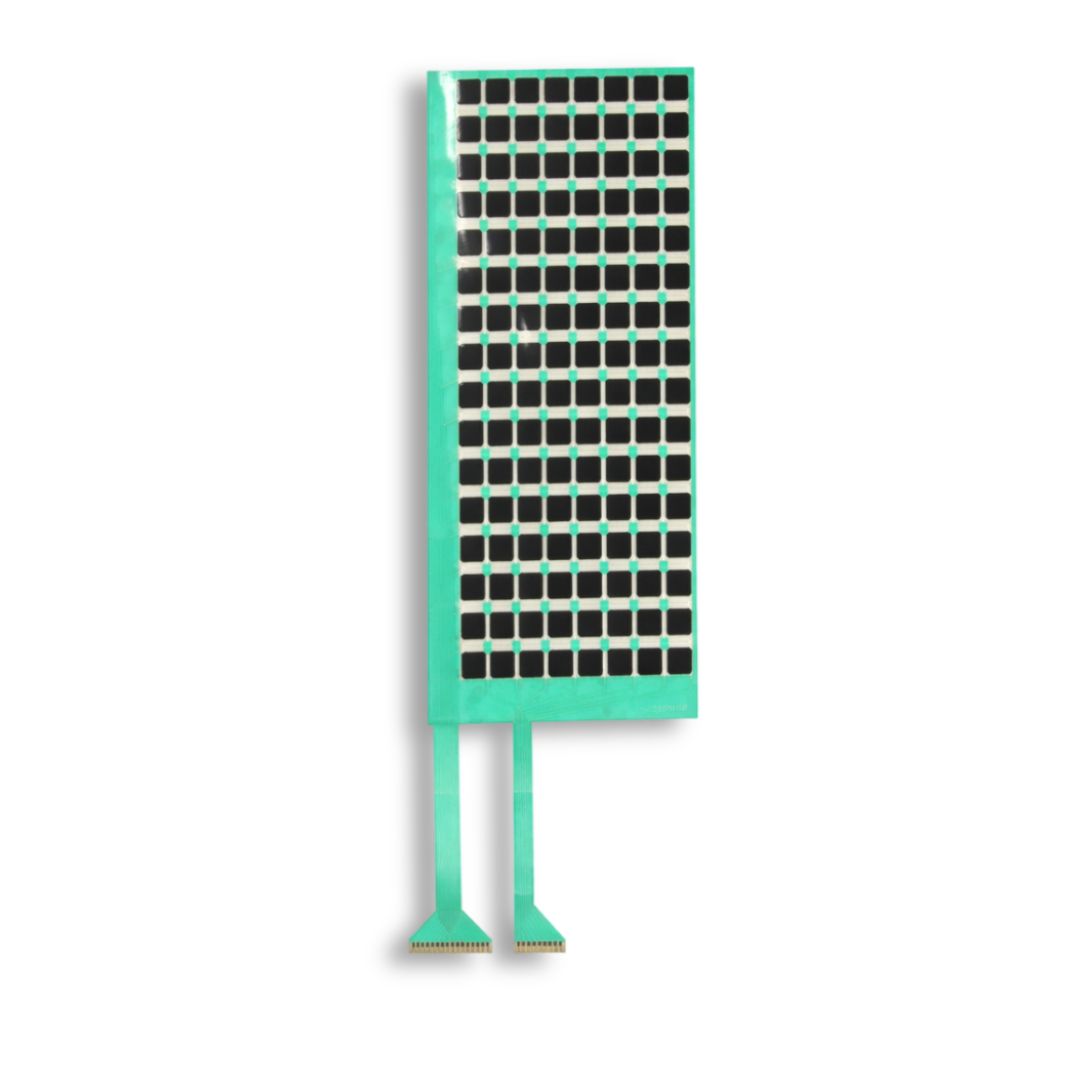

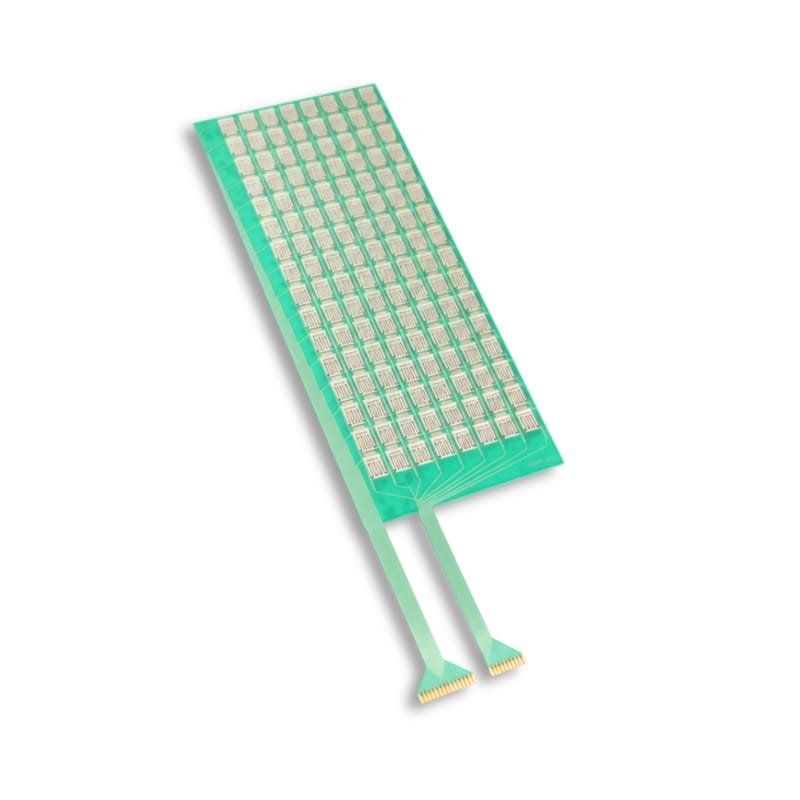

The LP4966 FSR Matrix Sensor (8×16) from Linepro Controls Pvt. Ltd. is a compact, flexible, and cost-efficient force sensing solution designed for precise force, pressure, and touch detection. Built on FSR (Force Sensitive Resistor) technology, it delivers fast response, high durability, and reliable performance even in demanding environments. Its ultra-thin polyester construction makes it ideal for space-constrained applications requiring accurate pressure mapping and long service life.

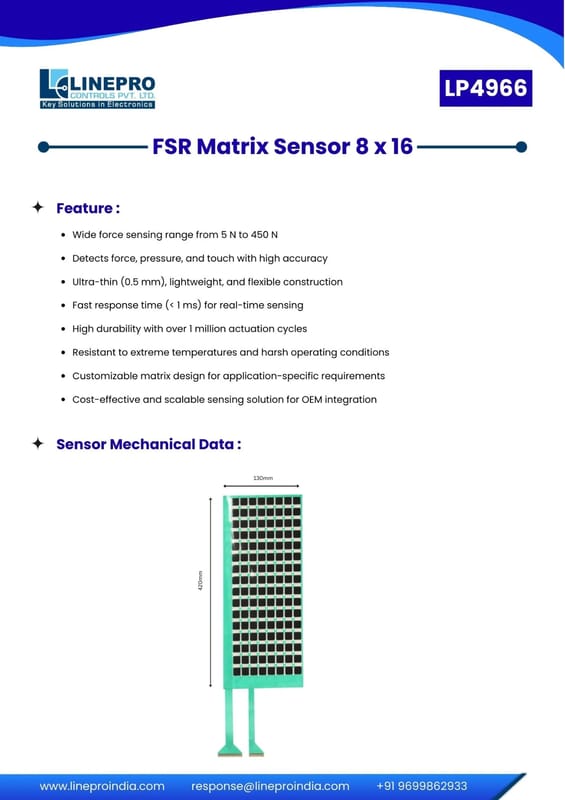

Key Feeatures:

• Wide force sensing range from 5N to 450N
• Detects force, pressure, and touch with high precision
• Ultra-thin (0.5 mm), lightweight, and flexible design
• Fast response time of < 1 ms
• Withstands extreme temperatures and harsh conditions
• Customizable for application-specific integration
• Cost-effective and scalable sensing solution
• High durability rated for over 1 million operations

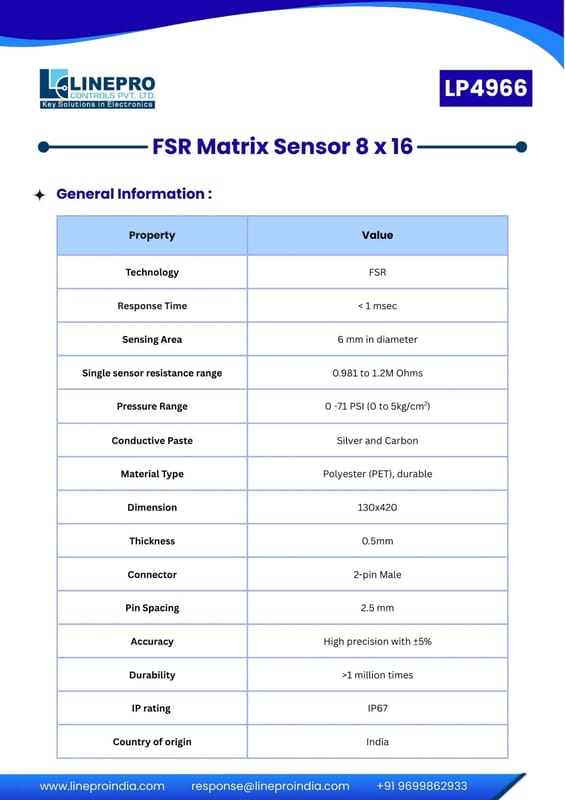

Product Details:

• Technology: FSR (Force Sensitive Resistor)
• Matrix Configuration: 8 × 16
• Response Time: < 1 ms
• Sensing Area: 6 mm diameter
• Pressure Range: 0–71 PSI (0–5 kg/cm²)
• Single Sensor Resistance: 0.981 to 1.2 MΩ
• Conductive Paste: Silver & Carbon
• Material: PET (Polyester), durable and flexible
• Dimensions: 130 x 420 mm
• Thickness: 0.5 mm

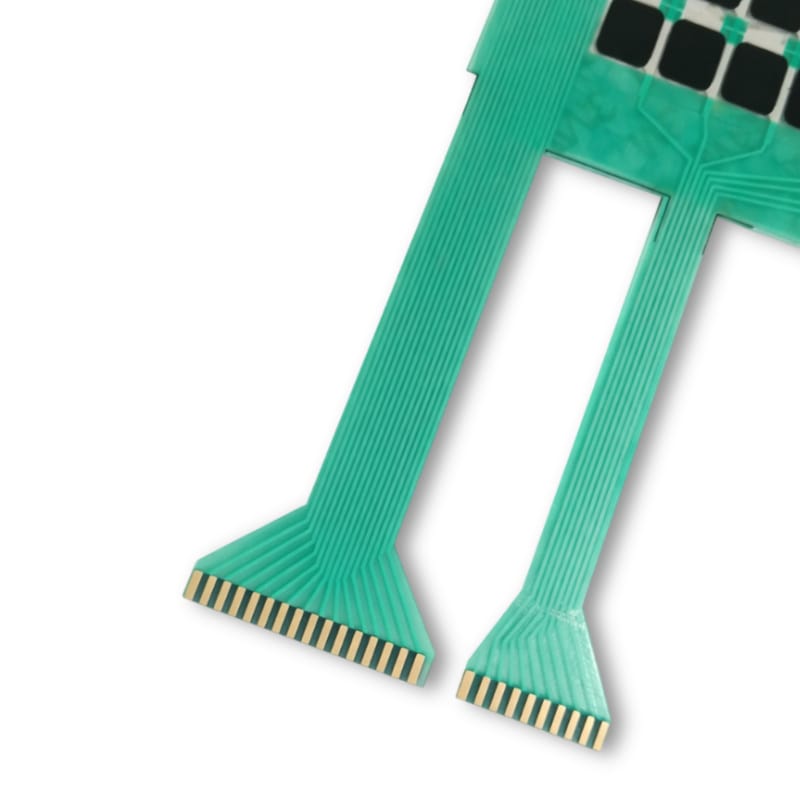

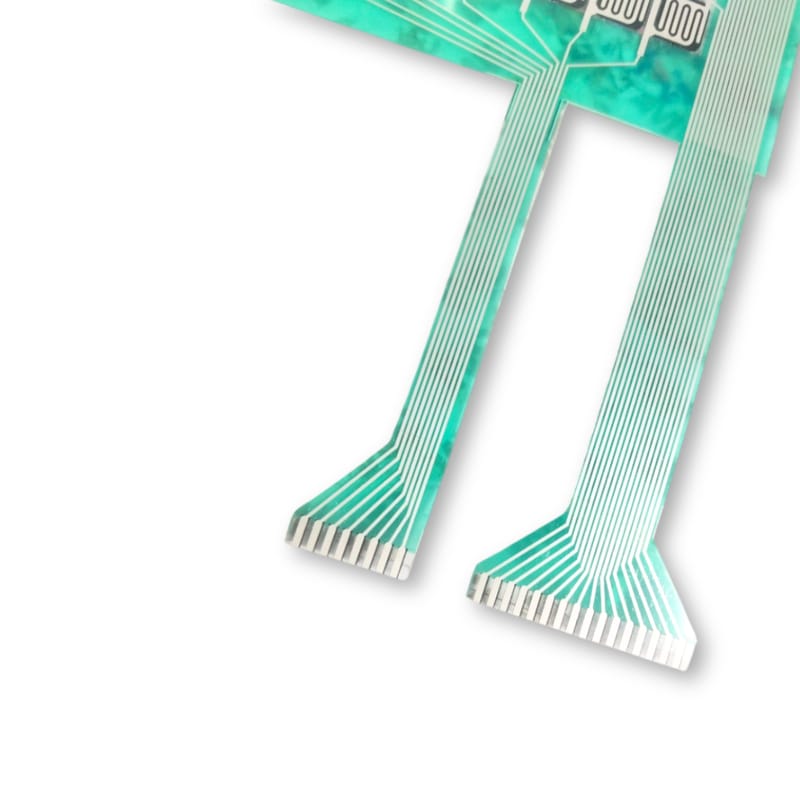

• Connector: 2-pin male pin
• Pin Spacing: 2.5 mm
• Accuracy: ±5%
• Durability: > 1 million cycles
• IP Rating: IP67
• Country of Origin: India

Applications:

• Sports & medical performance optimization
• Foot condition diagnosis
• Rehabilitation progress tracking
• Gait analysis systems
• Footwear design and development
