Product Description:

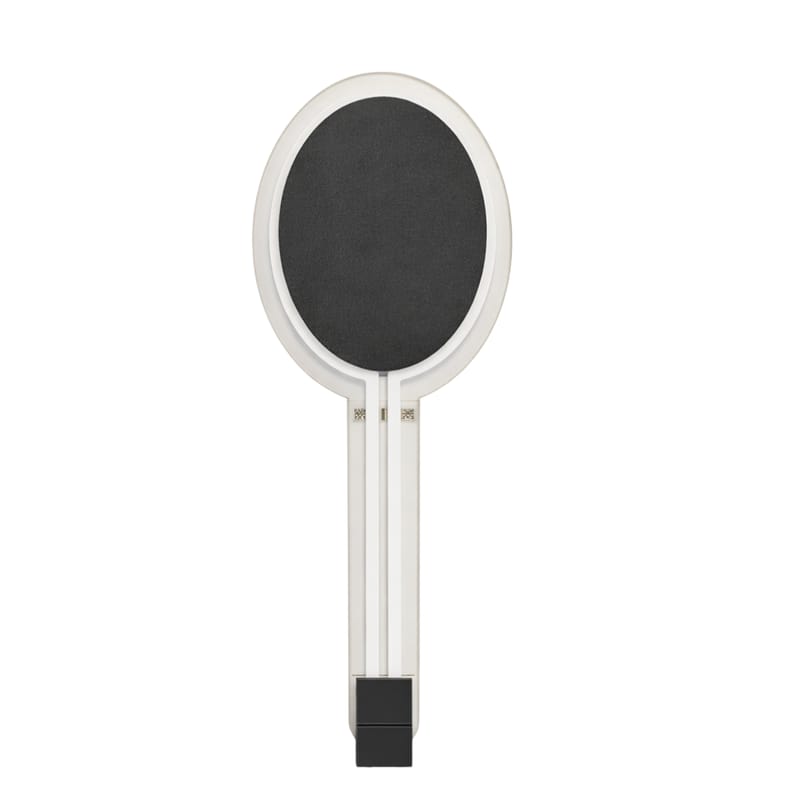

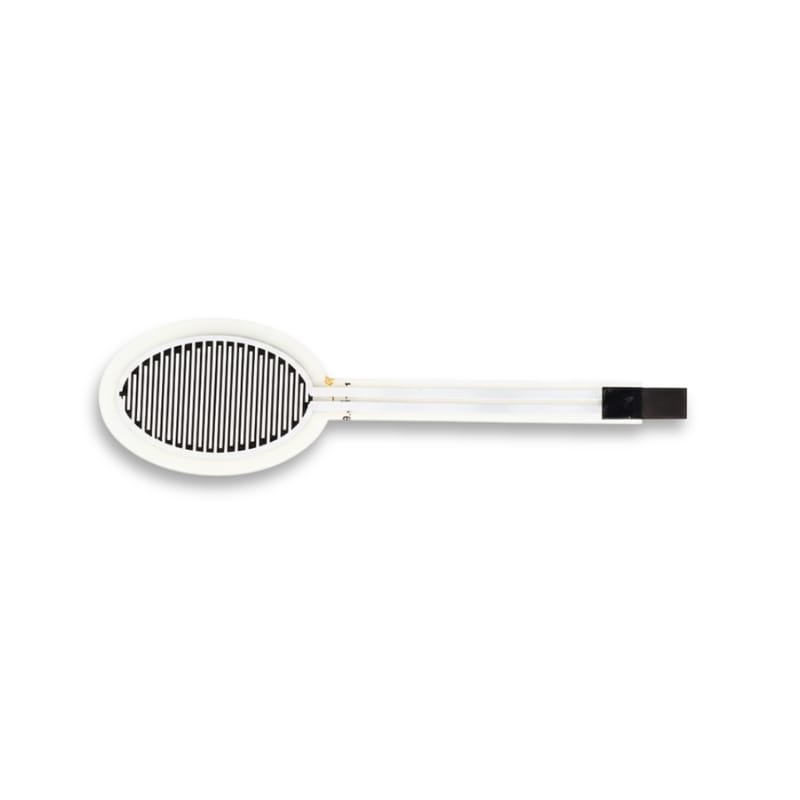

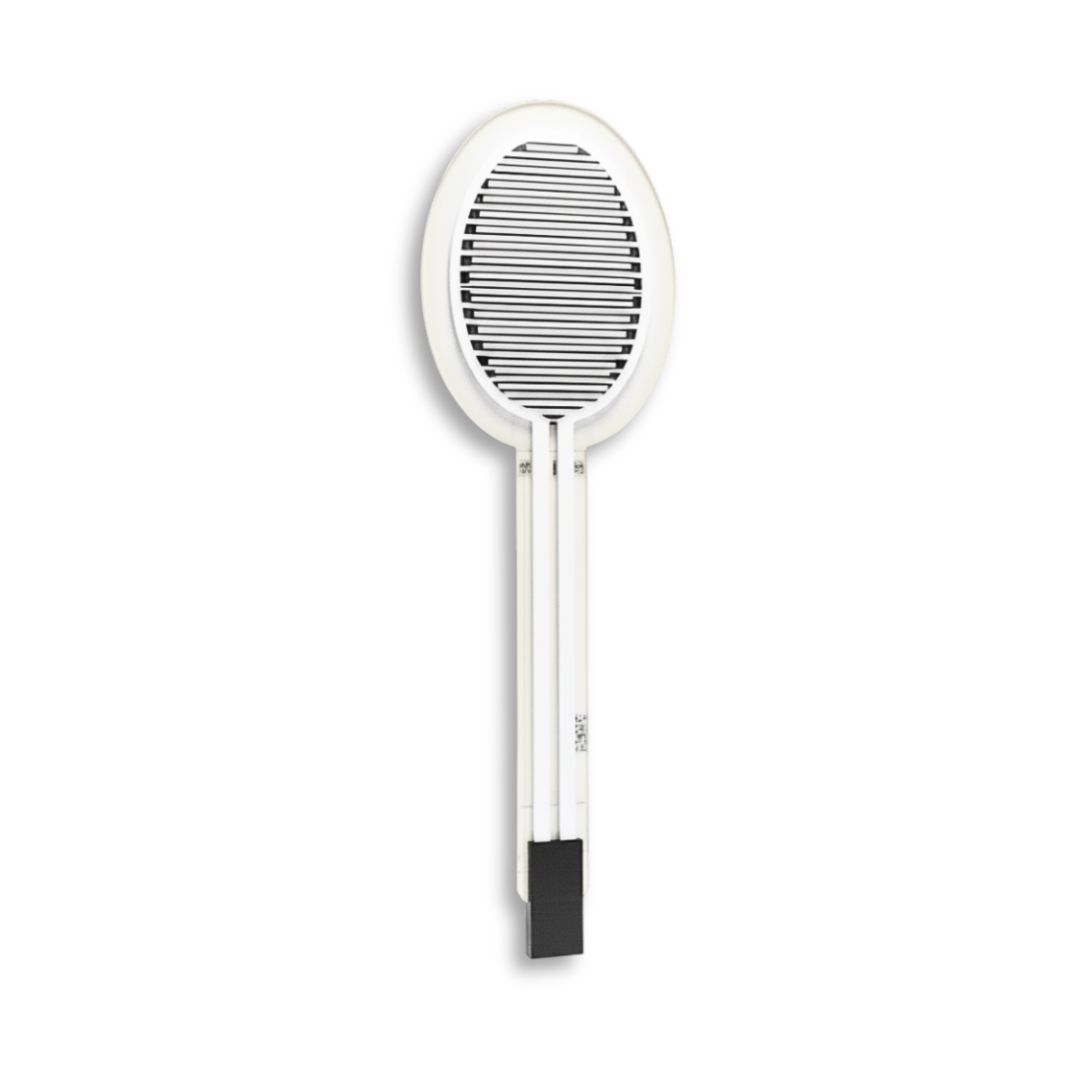

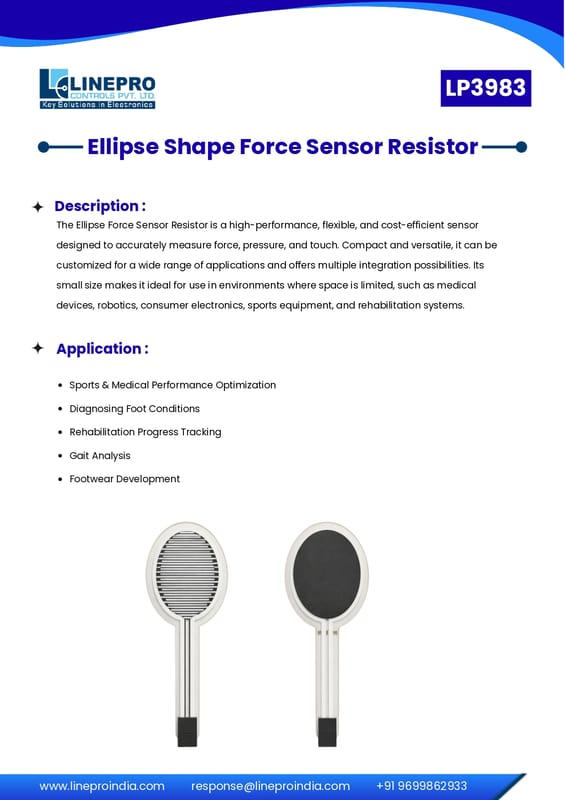

The LP3983 Ellipse Force Sensor Resistor is a versatile, compact, and high-precision sensor designed to measure force, pressure, and touch accurately. Its flexible design and robust construction make it perfect for medical devices, robotics, sports performance analysis, gait tracking, and footwear development. With a thin profile, fast response, and customizable options, the LP3983 is the ideal solution for applications where space and precision matter.

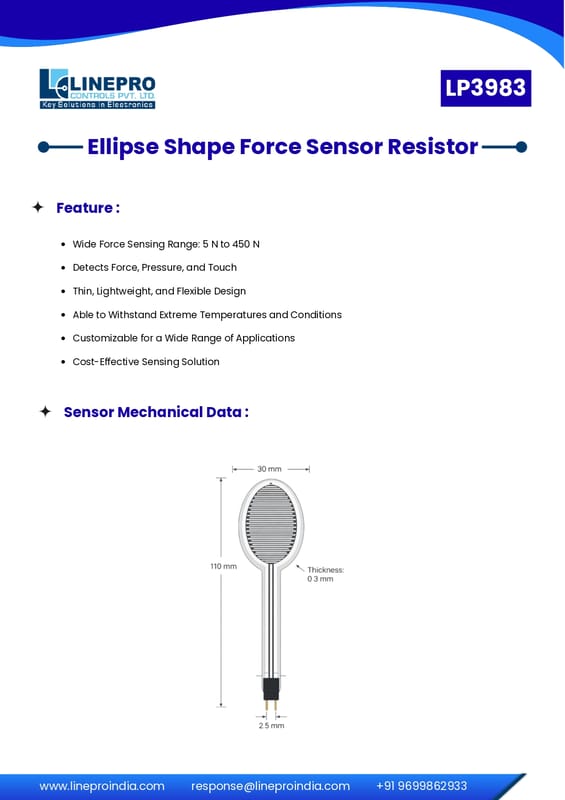

Key Features:

• Wide Force Sensing Range: 5 N – 450 N
• Detects Force, Pressure & Touch with High Accuracy
• Thin, Lightweight & Flexible Design
• Durable and Resistant to Extreme Temperatures
• Customizable for Multiple Applications
• Cost-Effective Sensing Solution

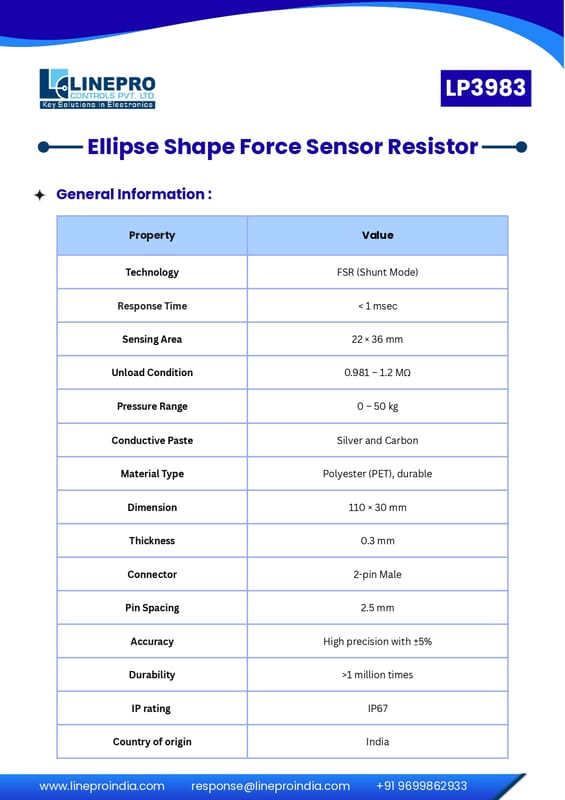

Product Details:

• Technology: FSR (Shunt Mode)
• Response Time: Less than 1 millisecond
• Sensing Area: 22 × 36 mm
• Unload Condition: 0.981 – 1.2 MΩ
• Pressure Range: 0 – 50 kg
• Conductive Paste: Silver and Carbon
• Material Type: Durable Polyester (PET)

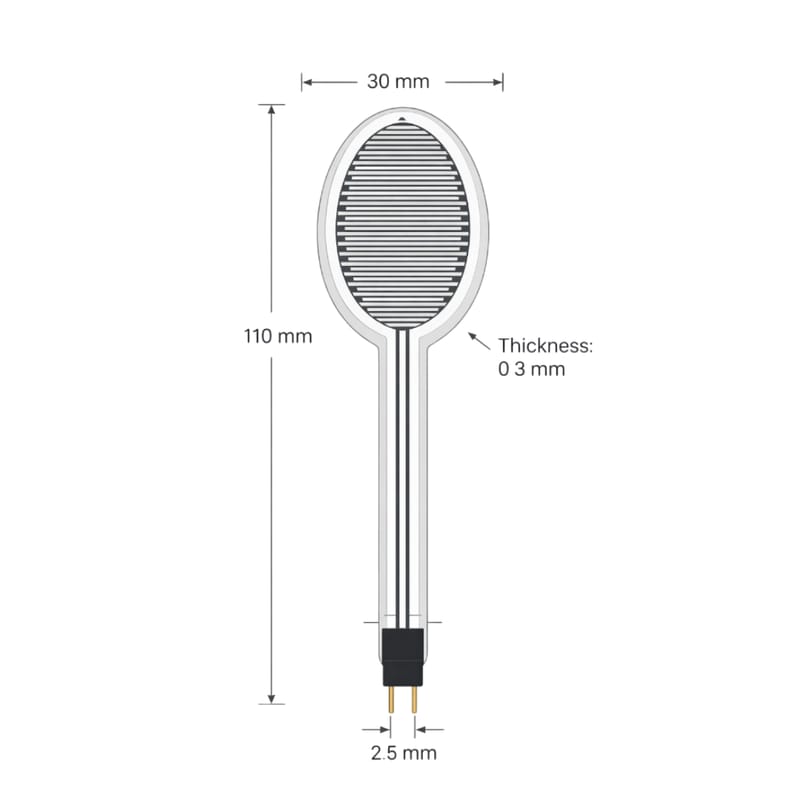

• Dimensions: 110 × 30 mm
• Thickness: 0.3 mm
• Connector: 2-pin Male
• Pin Spacing: 2.5 mm
• Accuracy: High precision ±5%
• Durability: Over 1 million actuations
• IP Rating: IP67
• Country of Origin: India
