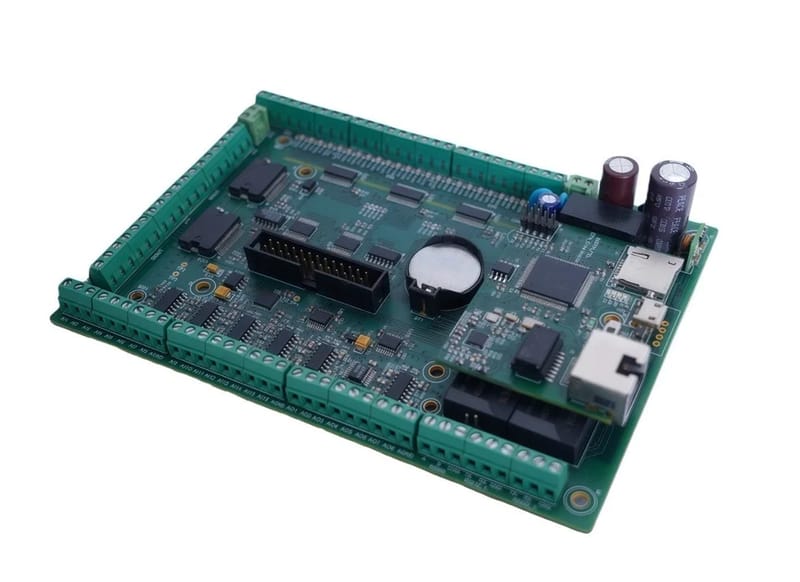

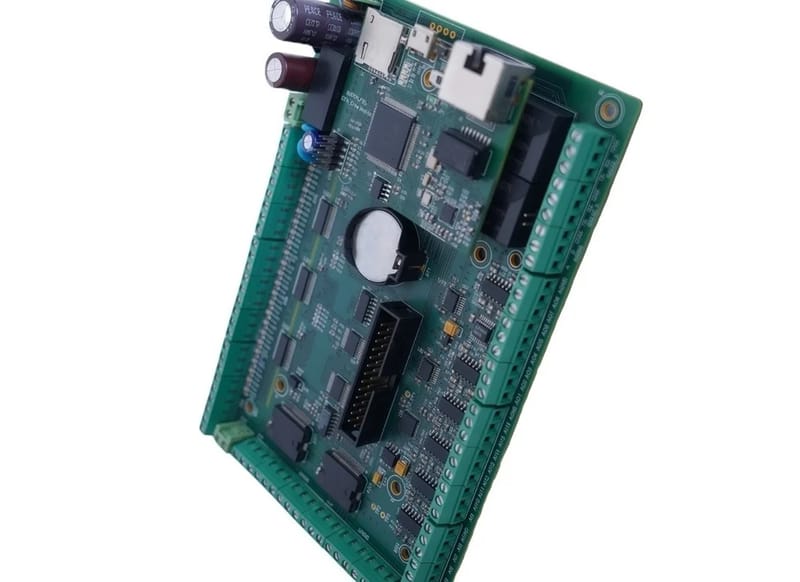

Single Board Computer

ProcessorArm 32-bit Cortex-M4Onboard RAM1 GBStorage SupportUp to 192+4 Kbytes of SRAM including 64-Kbyte of CCM (core coupled memory) data RAMUSB Ports2 x USBPower Input12 V DCDIGITAL INPUTS24 Digital Inputs Field Isolated 1KV with onboard Indication. 8 Channel Provision for Encoders or CoDIGITAL OUTPUTS16 Digital Outputs Field Isolated 200mA each channel sourcing @24V Field Isolated. Isolation VoltageANALOG INPUTS16 Analog Inputs 0V to 10V. 24 Bit ADC 19200 SPS 16-bit accuracy. Field Isolated 1KVANALOG OUTPUTS8 Analog Outputs 0-10V 14 Bit. Field Isolated 1KVCONNECTORS RJ-45 connectors: 1 Ethernet 3.81mm Pitch screw terminalsThe INS_SBC_1600 series is a high-performance industrial controller designed for precision automation and data acquisition. Powered by an Arm 32-bit Cortex-M4 microprocessor, it combines robust processing with extensive field-isolated I/O to ensure reliable performance in demanding environments. Key Technical Processing Power: Features an Arm Cortex-M4 core with up to 1 MB Flash and 196 KB SRAM. High-Precision Analog: Equipped with 16 Analog Inputs featuring a 24-bit ADC for high-accuracy measurement (0-10V). Extensive Digital I/O: Includes 24 isolated digital inputs (with encoder support) and 16 isolated digital outputs (with PWM support). Connectivity: Built-in 10/100 Ethernet, dual RS232 ports, and an isolated RS485 port for versatile networking. Industrial Reliability: Offers 1KV field isolation on I/O, a watchdog timer, and a real-time clock with battery backup.
