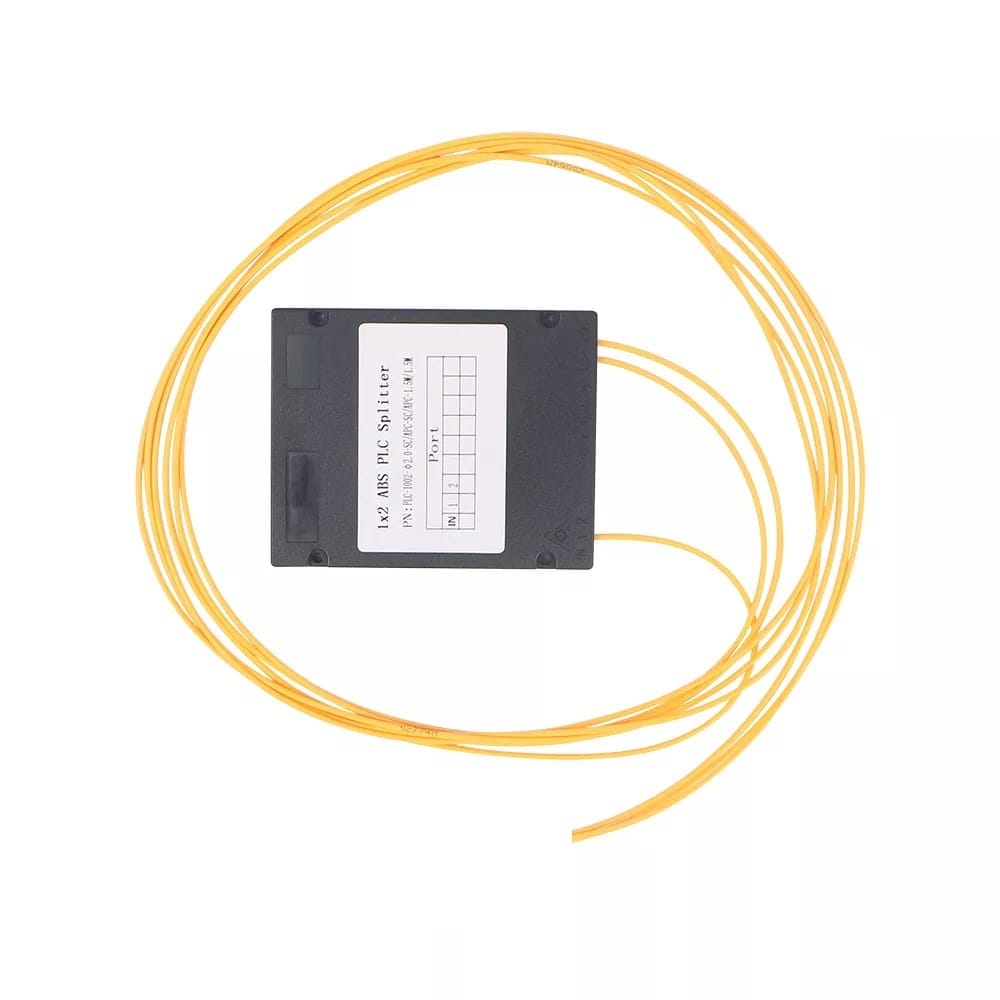

6666acdfe0734700361fa047PLC Mode Splitter 1X2 (Without Connector)
1×2 Fiber PLC Splitter, ABS Box Type, Single mode


Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.


Pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products or network cabinets.











FeaturesApplication






































Configuration Type: 1×2, LC/UPC connectorOptical Signal Distribution
2.0mm ITU G.657A1 for fiber input/outputData Communications
Low insertion loss = 4.2dBLan and CATV System
Low polarization dependent loss (PDL) = 0.2dBFTTX Deployment
Operating bandwidth: 1260 - 1650nmFTTH Network
Compact design, suitable for installation in optical equipmentsPassive Optical Networks (PON)
Wide Operating Temperature: -40 - 85°C, support industry standard applicationsMeasuring System and Laser System
High reliability and stability, Telecordia GR-1221/1209 compliantDWDM and CWDM Systems


Telcordia 1209 & 1221 Test Results



















































Name of the test


Condition


Duration


Temperature- Humidity aging


85°C and 85% RH


7 days


Vibration


10 - 55Hz, 1.52mm double amplitude, in three axes


1 hour


Component Impact


Test Impact of 500g (mass = 0.125kg), 1ms , half sine pulse


2 impacts


Temperature Cycling Test


-40 - 70°C, Ramp rate: 1°C /min, Dwell time > 15min


10 cycles


Temperature- Humidity cycling


-40 - 85°C , between 10°C and 23°C - 85% RH, at 85°C - 20%RH,

between °C and 85°C - maintain a linear change in RH,

below 10°C - uncontrolled RH


14 days


Water Immersion


43 ± 2°C , PH 5.5 ± 0.5


7 days


Fiber Side Pull test


0.23 kg load, 90° angle , 2 directions


5 seconds


Fiber Side Pull test


0.45 Kg load for Single Input Fiber, 1.5 Kg load for 8 Fiber Ribbon Outputs


5 seconds



Compact design, suitable for installation in outdoor fiber distribution box

The ABS PLC splitter supports the protection for inner componnents, it is suitable for reliable installation in your system design and manufacturing. Many of our OEM customers in the FTTH, FTTX, PON, GOPN prefer to use the ABS PLC splitter together with outdoor fiber distribution box

multilinkonline.com-1X2
INR301Out of Stock

Delhi, DL

Visit the PineKart Store

Plc Mode Splitter 1x2 (without Connector)

Be the first to review this product

1×2 Fiber PLC Splitter, ABS Box Type, Single mode


Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide t...

Read More

Key Attributes

Country of originIndia
BrandPineKart
Net Quantity1 unit
Manufacturer or packer nameDimension Next Infocom Pvt Ltd
View full attributes

1×2 Fiber PLC Splitter, ABS Box Type, Single mode


Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.


Pigtailed ABS splitter is most commonly used in the PON networks. It provides the complete protection for inner optical components and cable, as well as designed for the convenient and reliable installation, but its volume is relatively large. It's mainly used for various connection and distribution products or network cabinets.











FeaturesApplication






































Configuration Type: 1×2, LC/UPC connectorOptical Signal Distribution
2.0mm ITU G.657A1 for fiber input/outputData Communications
Low insertion loss = 4.2dBLan and CATV System
Low polarization dependent loss (PDL) = 0.2dBFTTX Deployment
Operating bandwidth: 1260 - 1650nmFTTH Network
Compact design, suitable for installation in optical equipmentsPassive Optical Networks (PON)
Wide Operating Temperature: -40 - 85°C, support industry standard applicationsMeasuring System and Laser System
High reliability and stability, Telecordia GR-1221/1209 compliantDWDM and CWDM Systems


Telcordia 1209 & 1221 Test Results



















































Name of the test


Condition


Duration


Temperature- Humidity aging


85°C and 85% RH


7 days


Vibration


10 - 55Hz, 1.52mm double amplitude, in three axes


1 hour


Component Impact


Test Impact of 500g (mass = 0.125kg), 1ms , half sine pulse


2 impacts


Temperature Cycling Test


-40 - 70°C, Ramp rate: 1°C /min, Dwell time > 15min


10 cycles


Temperature- Humidity cycling


-40 - 85°C , between 10°C and 23°C - 85% RH, at 85°C - 20%RH,

between °C and 85°C - maintain a linear change in RH,

below 10°C - uncontrolled RH


14 days


Water Immersion


43 ± 2°C , PH 5.5 ± 0.5


7 days


Fiber Side Pull test


0.23 kg load, 90° angle , 2 directions


5 seconds


Fiber Side Pull test


0.45 Kg load for Single Input Fiber, 1.5 Kg load for 8 Fiber Ribbon Outputs


5 seconds



Compact design, suitable for installation in outdoor fiber distribution box

The ABS PLC splitter supports the protection for inner componnents, it is suitable for reliable installation in your system design and manufacturing. Many of our OEM customers in the FTTH, FTTX, PON, GOPN prefer to use the ABS PLC splitter together with outdoor fiber distribution box

Country of originIndia
BrandPineKart
Common nameSplitter
Net Quantity1 unit
Manufacturer or packer nameDimension Next Infocom Pvt Ltd
Manufacturer or packer addressDimension Next Infocom Pvt Ltd
Manufacturing DateRefered to Label
contact details consumer carePineKart, [email protected]
