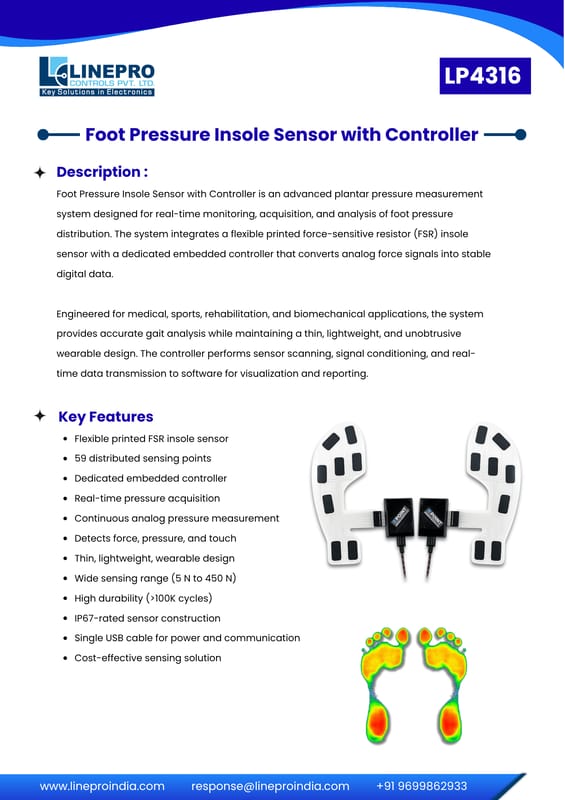

Product Description:

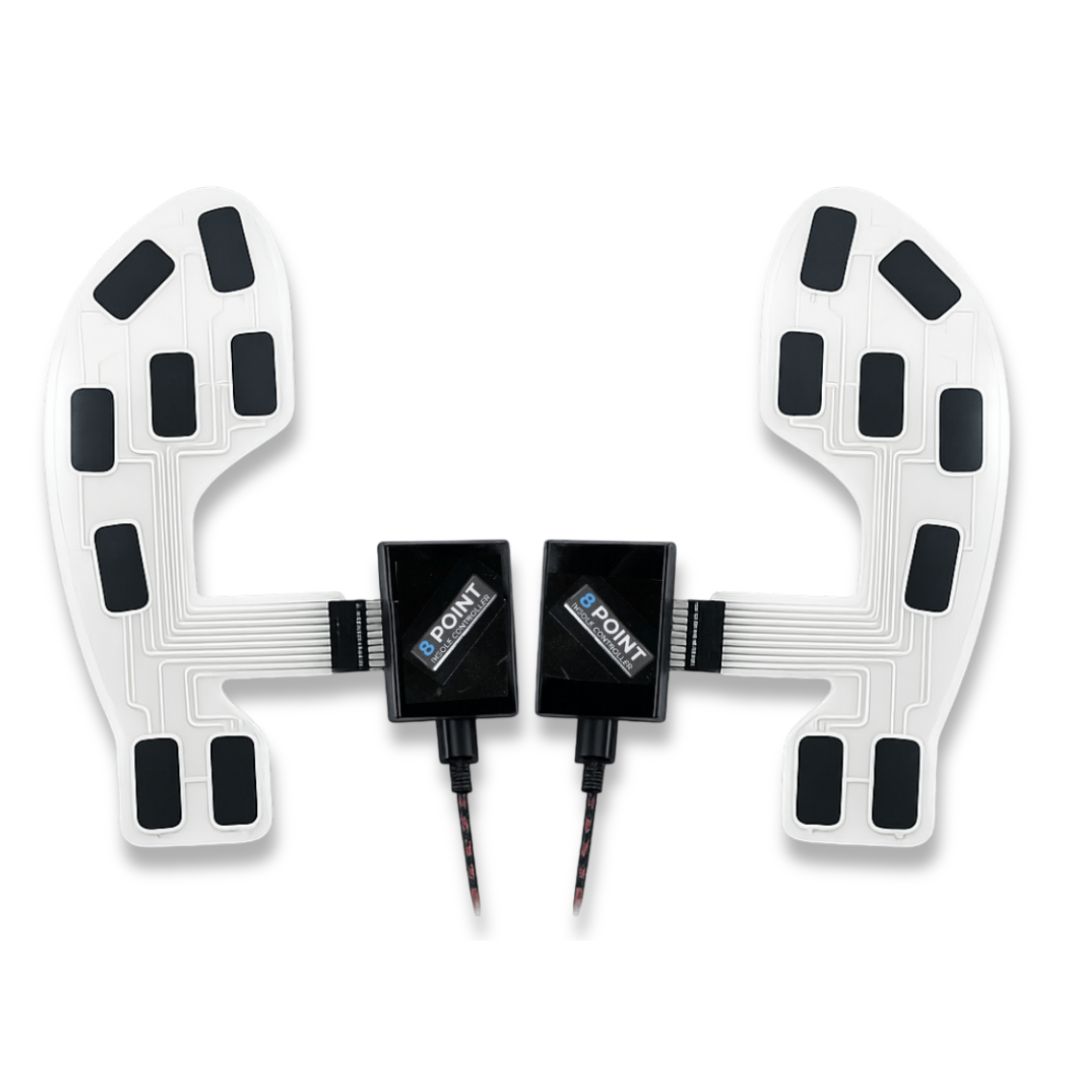

Foot Pressure Insole Sensor with Controller is a flexible, ultra-thin plantar pressure measurement system designed for real-time monitoring of foot force distribution. The printed FSR insole sensor captures pressure across multiple points, while the embedded controller processes and transmits accurate data to software for visualization and analysis. Ideal for medical diagnostics, sports performance, rehabilitation, and footwear research.

Key Features:

• Flexible printed FSR insole sensor
• 59 distributed sensing points
• Dedicated embedded controller included
• Real-time pressure acquisition
• Detects force, pressure, and touch
• Wide sensing range: 5 N to 450 N
• Thin, lightweight, wearable design
• High durability (>100K cycles)
• IP67-rated sensor protection
• Single USB cable for power & data
• Continuous analog pressure output
• Easy integration with PC software

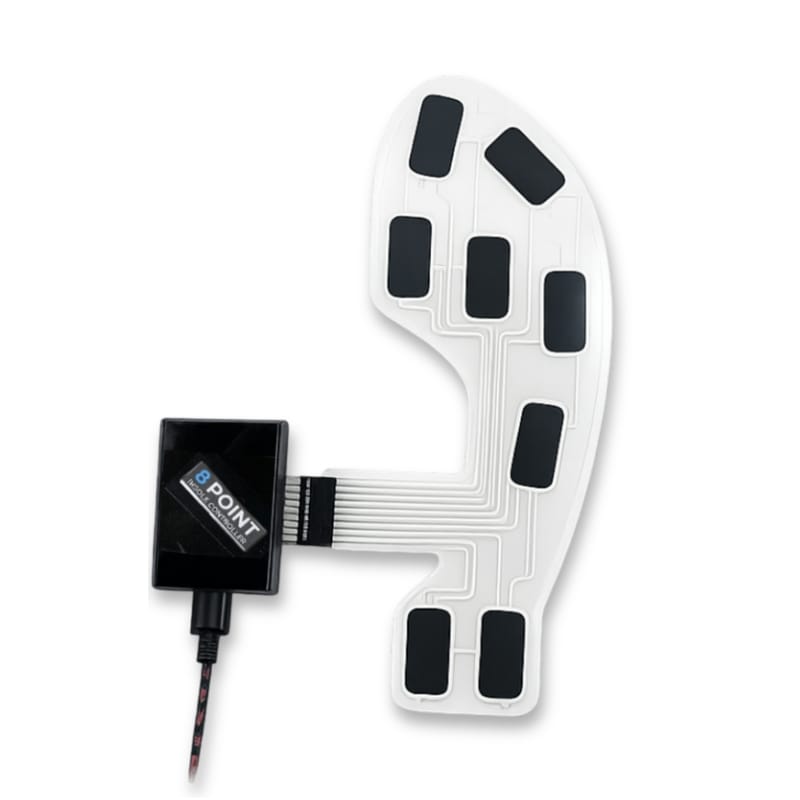

Product Details:

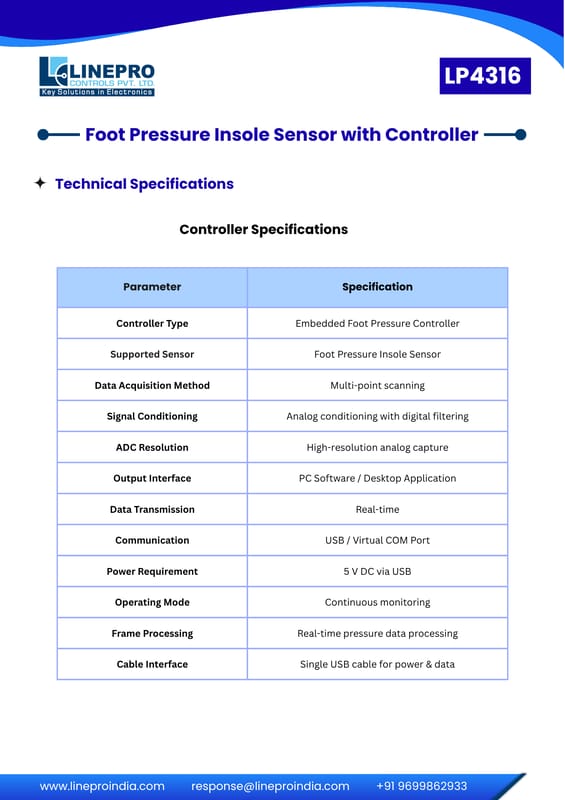

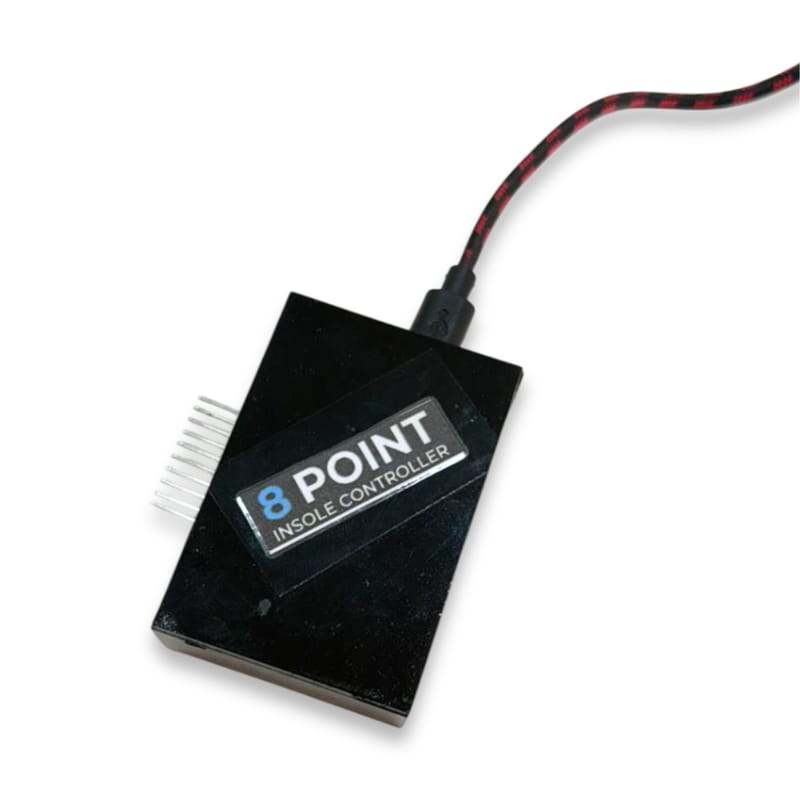

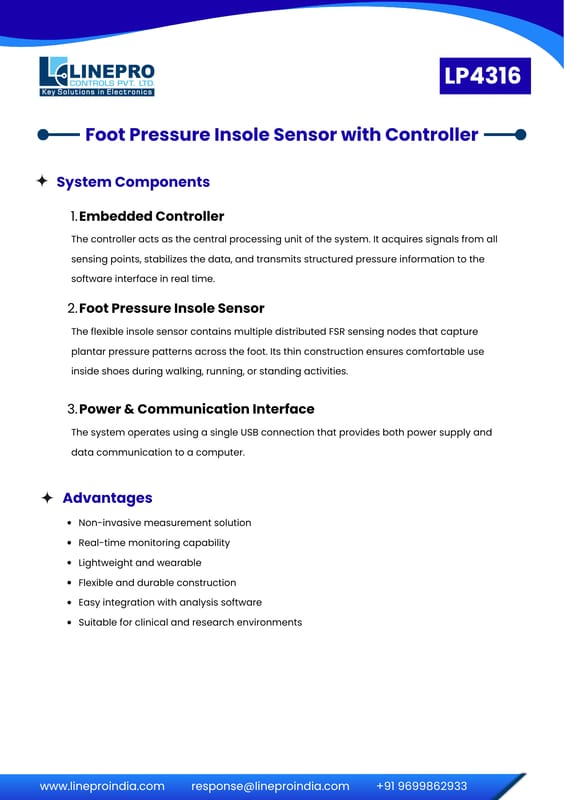

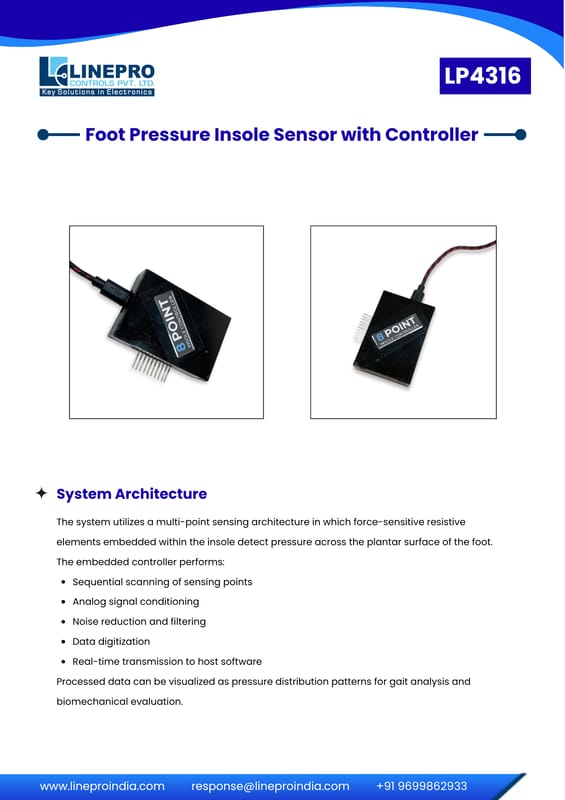

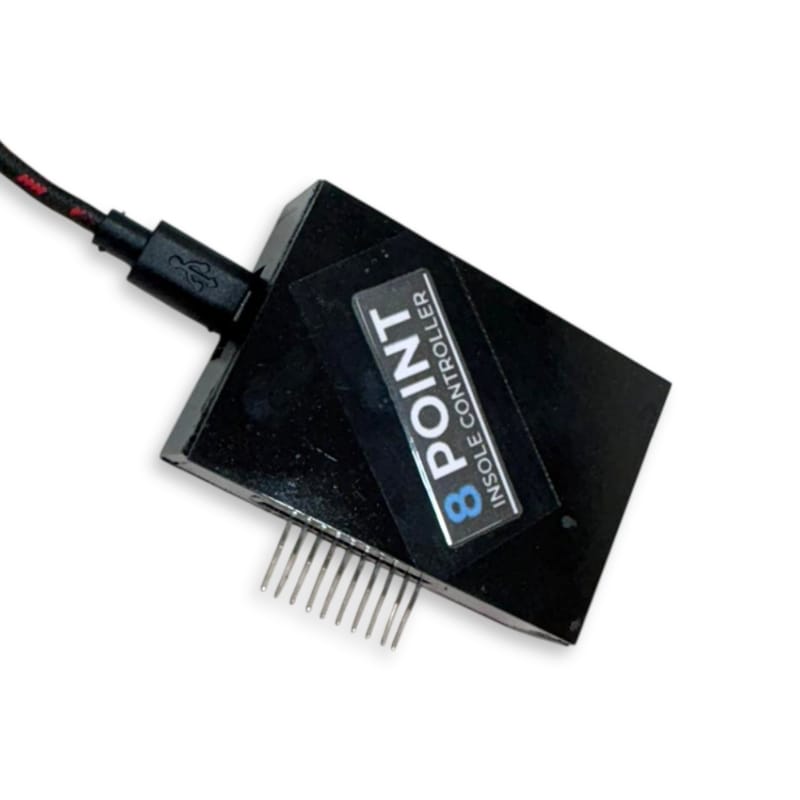

Controller

• Type: Embedded Foot Pressure Controller
• Data Acquisition: Multi-point scanning
• Signal Processing: Analog conditioning + digital filtering
• Output Interface: PC Software / Desktop Application
• Communication: USB / Virtual COM Port
• Power Supply: 5 V DC via USB
• Operating Mode: Continuous real-time monitoring

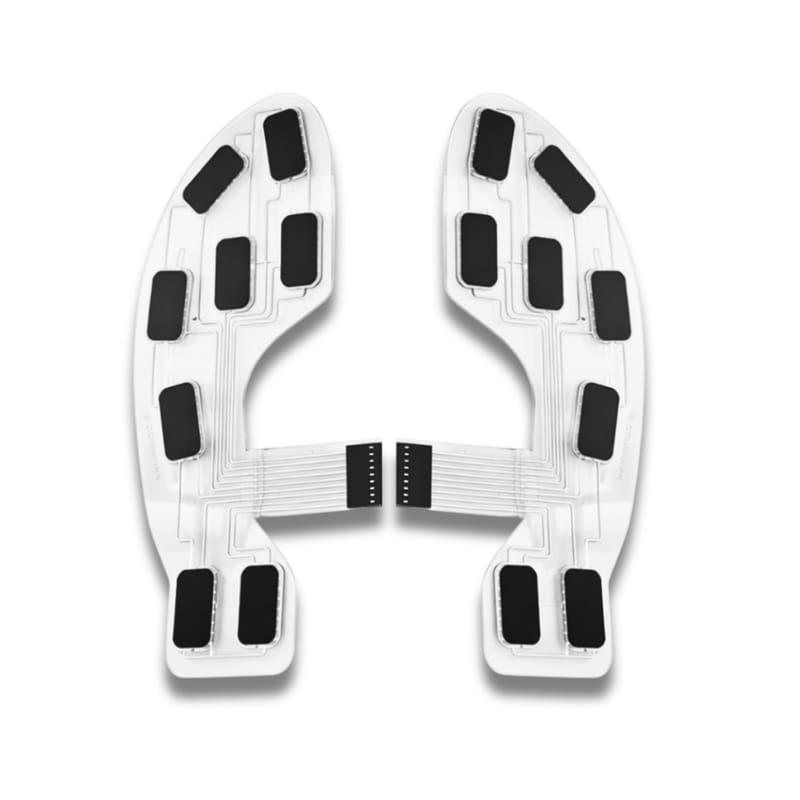

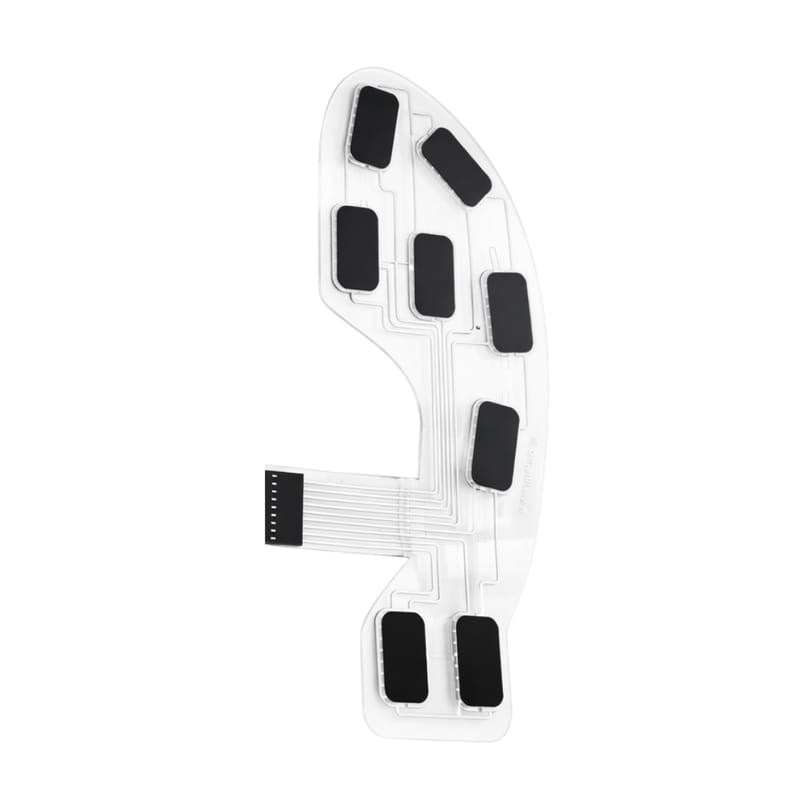

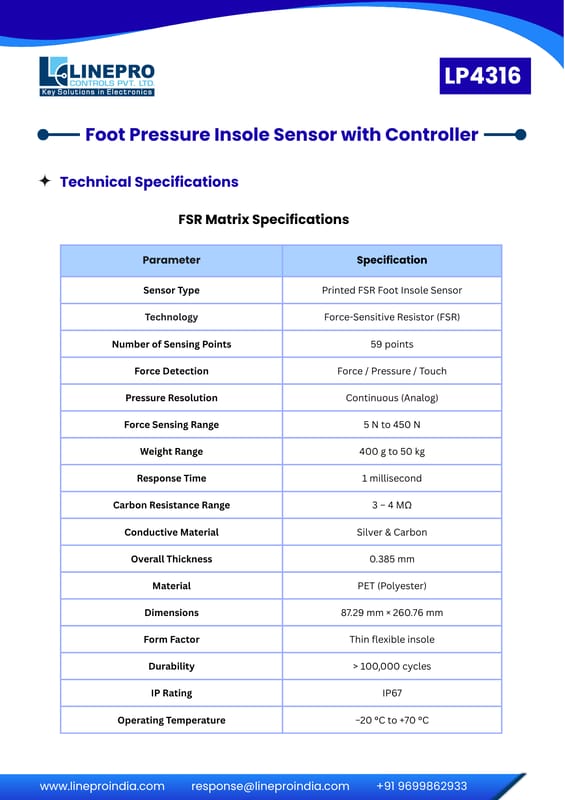

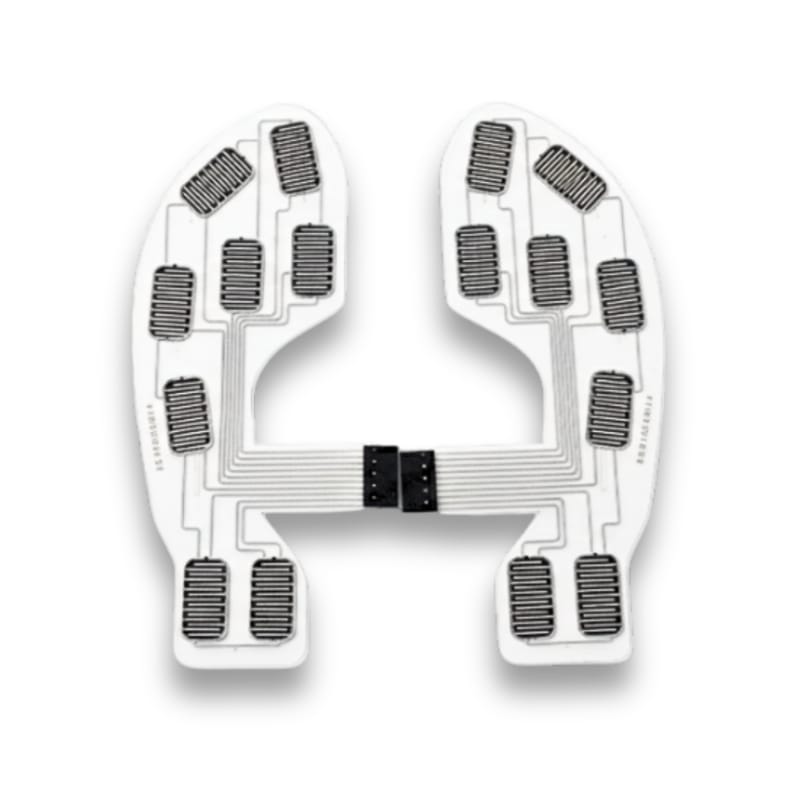

Foot Insole Sensor

• Sensor Type: Printed FSR Insole Sensor
• Technology: Force-Sensitive Resistor (FSR)
• Sensing Points: 59
• Force Range: 5 N to 450 N
• Weight Range: 400 g to 50 kg
• Response Time: 1 ms
• Pressure Resolution: Continuous (Analog)
• Thickness: 0.385 mm
• Material: PET (Polyester)

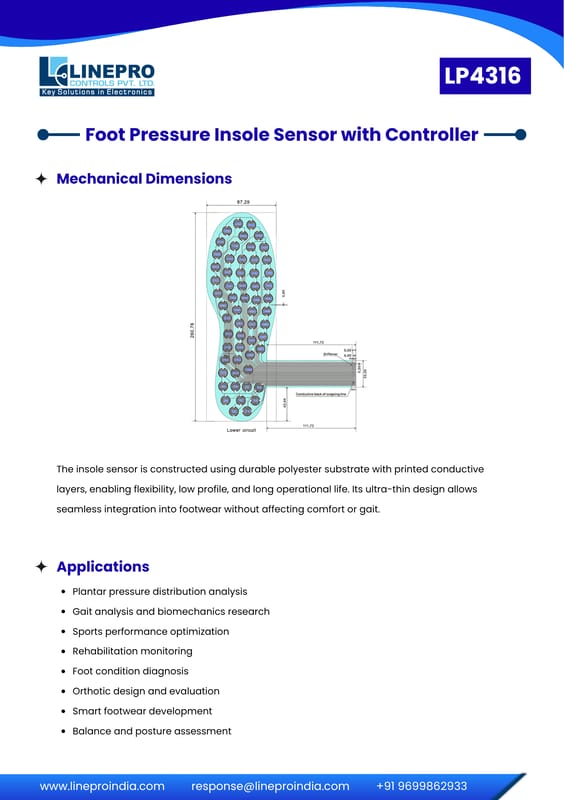

• Dimensions: 87.29 mm × 260.76 mm
• Durability: >100,000 cycles
• IP Rating: IP67
• Operating Temperature: −20 °C to +70 °C

Applications:

• Plantar pressure distribution analysis
• Gait analysis and biomechanics studies
• Sports performance optimization
• Rehabilitation monitoring
• Foot condition diagnosis
• Orthotic and insole development
• Smart footwear research
• Balance and posture assessment
