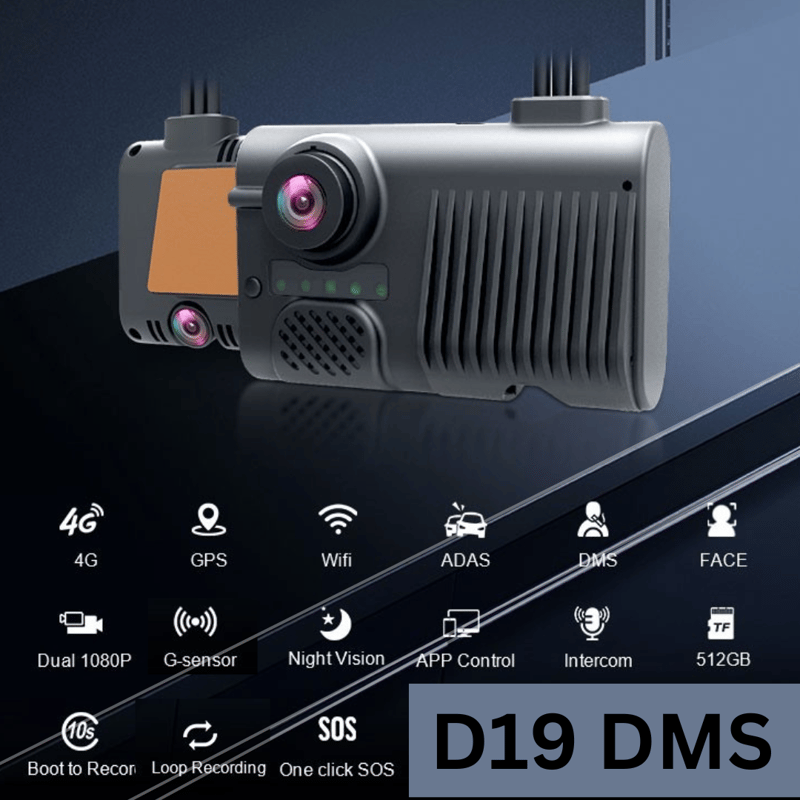

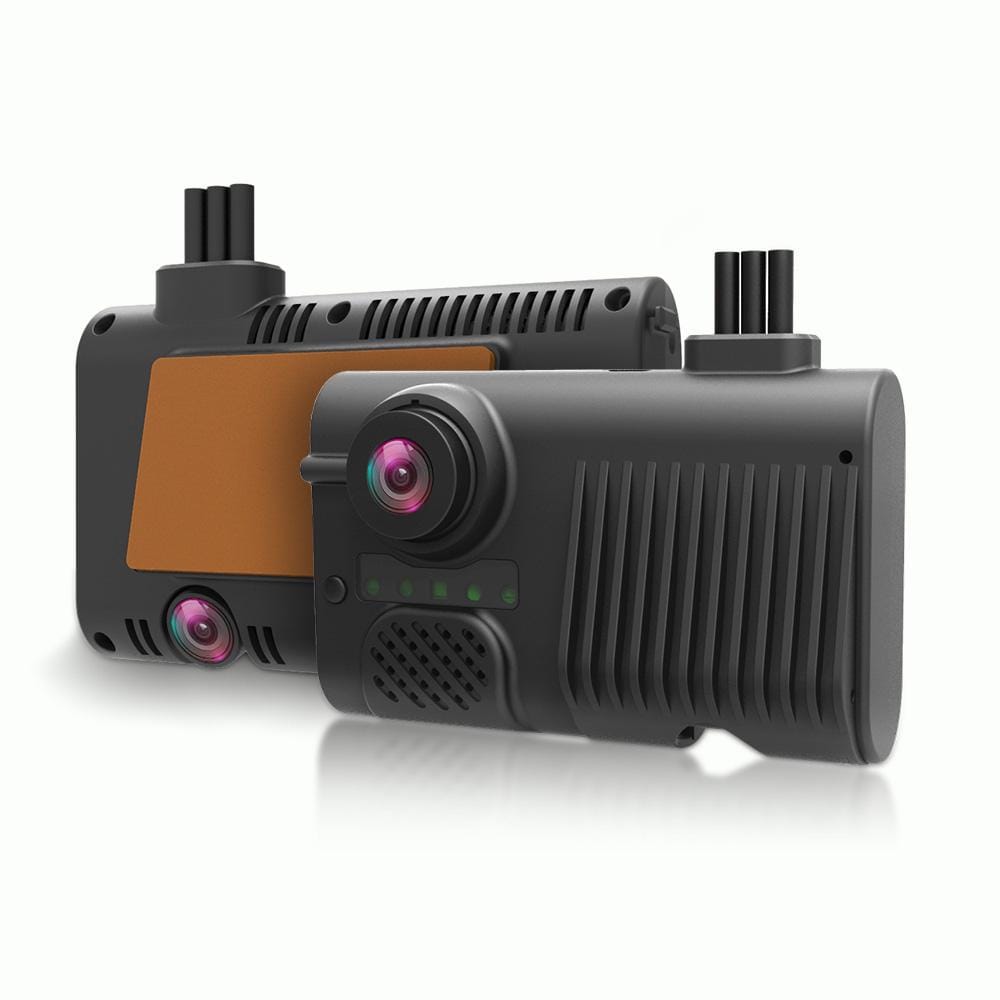

AI-Enabled 4G Dual-Channel Vehicle MDVR with ADAS, DMS & GPS

Advanced Fleet Safety & Video Telematics Solution

This AI-powered dual-channel vehicle MDVR is designed for intelligent fleet management, driver safety monitoring, and real-time vehicle surveillance. Equipped with front and rear 1080P cameras, 4G connectivity, GPS tracking, and advanced AI algorithms, it enables comprehensive monitoring, event recording, and real-time communication between vehicle and control center.

🔑 Key Product Features

• H.264 / H.265 Video Encoding & Decoding for efficient storage and transmission
• Dual-Camera Support

  • Front Camera: 1080P

  • Rear Camera: 1080P
  • Supports ADAS & DMS applications
• High Storage Capacity

  • Supports 1 TF card up to 512GB

• Emergency SOS Alarm Button support
• 4G LTE & GPS Tracking

  • External GPS (G-Mouse, TTL supported)

• Mobile App & Web Platform Support

  • Live video preview

  • Playback & remote configuration

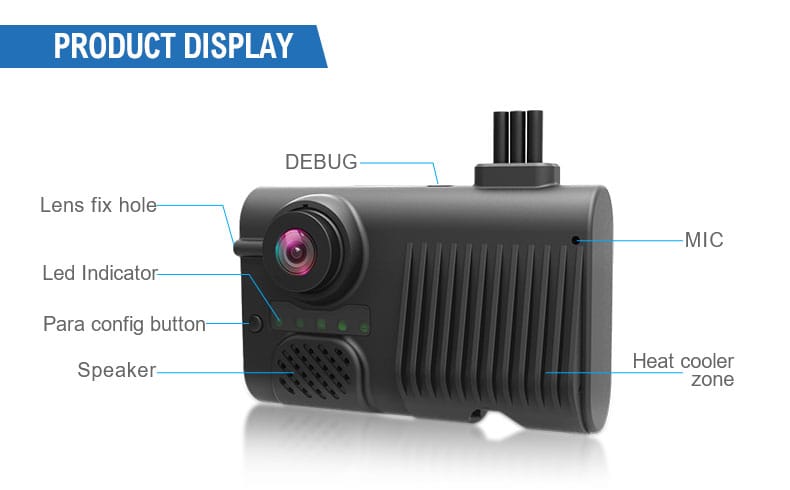

• Built-in Speaker & Microphone

  • Supports two-way voice intercom between device and platform

• AI Intelligent Algorithms

  • ADAS, DMS, and Driver Face Recognition

• Built-in WiFi

  • For local video viewing and parameter configuration

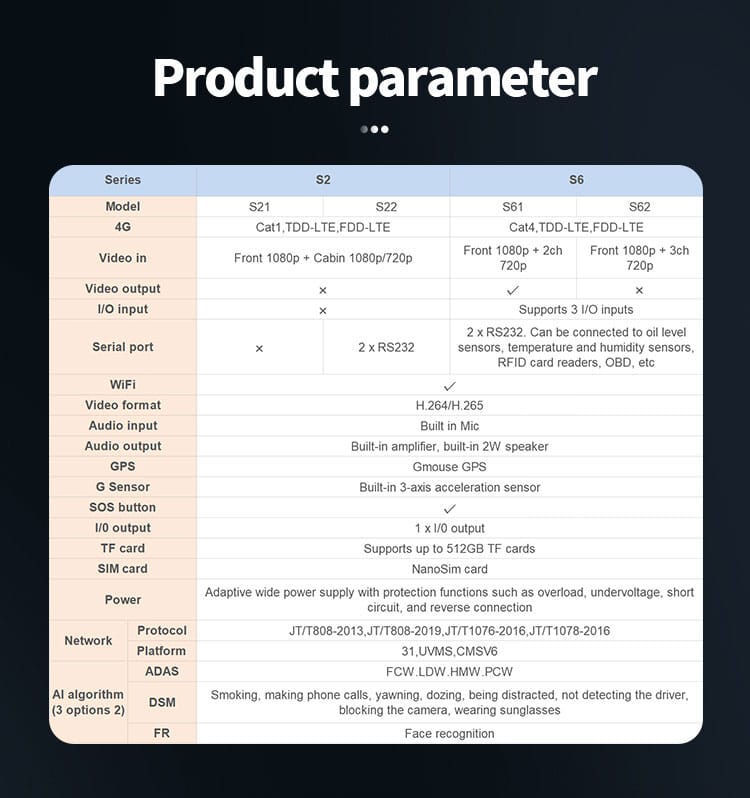

🛠️ Technical Specifications

System

• Language: English
• Operating System: Linux
• User Interface: Web Platform / Mobile App
• Processor: ARM Dual-Core @ 1.5GHz
• Memory: 2GB DDR
• Flash Storage: 2GB

Video & Recording

• Video Input:

  • Front Camera: 1080P, H105° / V62°

  • Rear Camera: 1080P, H122° / V63°
• Video Format: H.264 / H.265
• Recording Resolution: 1080P / 720P / D1 (Optional)
• Image Quality Levels: 1–4
• Recording Mode: Auto record on startup

Audio

• Audio Input: Built-in Microphone
• Audio Output: Built-in Amplifier + 2W Speaker
• Audio Format: G.711A

Connectivity & Sensors

• 4G Network: Built-in 4G LTE (TDD-LTE / FDD-LTE)
• WiFi: Built-in (for video viewing & configuration)
• GPS: External G-Mouse GPS
• G-Sensor: Built-in 3-axis acceleration sensor
• SOS: Supported

Interfaces & Ports

• TF Card Slot: Up to 512GB
• USB Port: Supported
• SIM Card Slot: 1 SIM
• Firmware Upgrade: TF Card & FTP Upgrade Supported

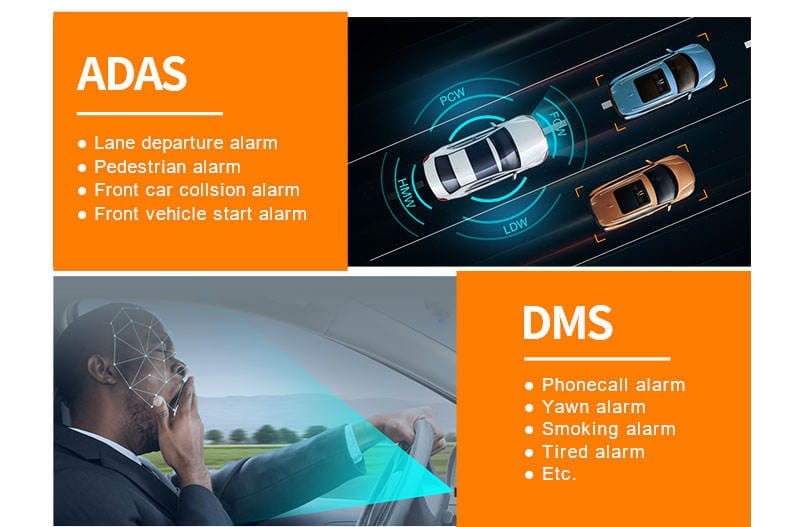

🤖 AI Algorithms Supported

ADAS (Advanced Driver Assistance System):

• FCW – Forward Collision Warning
• LDW – Lane Departure Warning
• HMW – Headway Monitoring Warning
• PCW – Pedestrian Collision Warning

DMS (Driver Monitoring System):

• Smoking Detection
• Mobile Phone Usage
• Yawning Detection
• Drowsiness Detection
• Driver Distraction
• Driver Not Detected
• Camera Blocking Detection
• Sunglasses Identification

Face Recognition (FR):

• Driver facial recognition and identification

🔋 Power Management

• Input Voltage: DC 9V – 36V
• Power Protection:

  • Overload

  • Undervoltage
  • Short Circuit
  • Reverse Polarity Protection
• Power Consumption: < 5W (without peripherals)

🌡️ Environmental Conditions

• Operating Temperature: -20°C to +70°C
• Humidity: 20% – 80%

🌐 Platform & Protocol Support

• Standards:

  • JT/T 808-2013

  • JT/T 808-2019
  • JT/T 1076-2016
  • JT/T 1078-2016

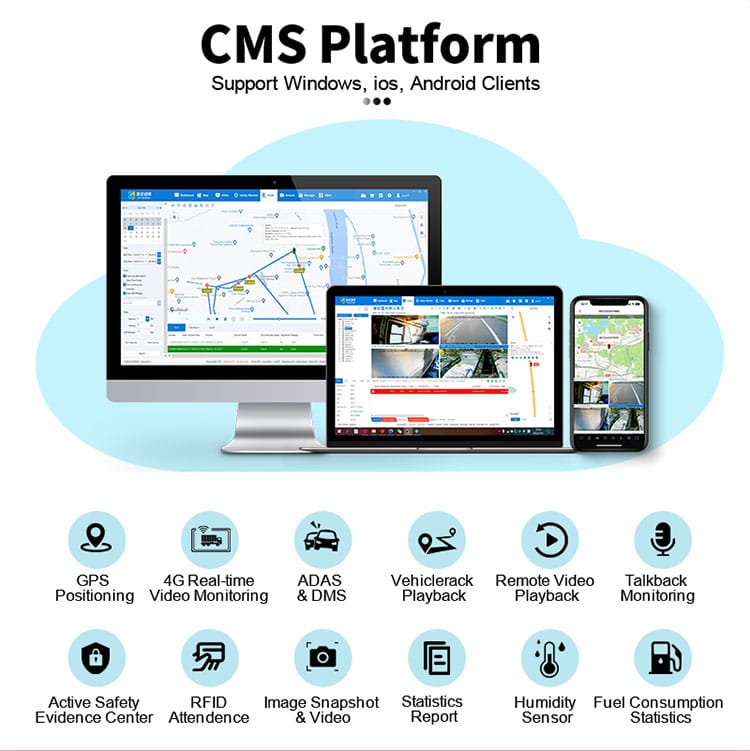

• Platforms: UVMS, CMSV6

🎯 Ideal Applications

• Fleet Management Systems
• Public Transport & School Buses
• Logistics & Commercial Vehicles
• Ambulance & Emergency Vehicles
• Law Enforcement & Government Fleets
• Driver Safety & Compliance Monitoring

✅ A Complete AI-Based Vehicle Surveillance & Safety Solution

Combining real-time video, AI driver analysis, GPS tracking, and 4G connectivity, this MDVR delivers reliable performance for modern fleet safety and compliance requirements.
