Key Specifications

• Display Type: LED‑backlit LCD / TFT active matrix

• Diagonal Size: 17" (43.18 cm)

• Viewable Size: 17" (43.18 cm)

• Panel Type: TN

• Aspect Ratio: 5:4

• Native Resolution: 1280 × 1024 at 60 Hz

• Pixel Pitch: 0.264 mm

• Brightness: 250 cd/m² (typical)

• Contrast Ratio: 1000:1

• Colour Support: 16.7 million colours

• Response Time: 5 ms (black‑to‑white)

• Vertical Refresh Rate: 56 – 76 Hz

• Horizontal Refresh Rate: 30 – 81 kHz

• Viewing Angles: Horizontal 170° / Vertical 160°

• Screen Coating: Anti‑glare, 3H Hard Coating

• Backlight Technology: LED backlight

Features

• 72% (CIE 1931) colour gamut, 85% (CIE 1976) colour gamut

• PowerNap, Image Enhance

Dimensions & Weight

• With Stand: 37.45 × 16.55 × 38.95 cm, 2.68 kg

• Without Stand: 37.45 × 4.65 × 30.69 cm, 2.08 kg

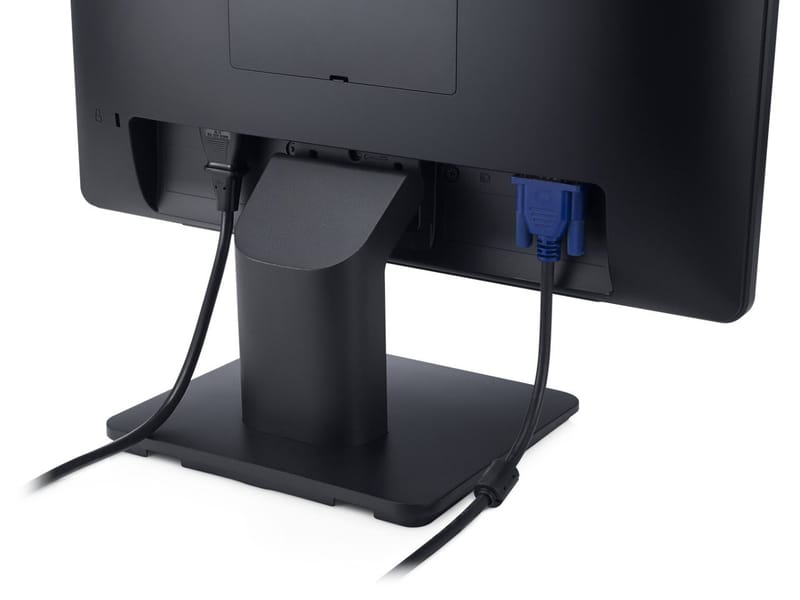

Connectivity

• VGA

• DisplayPort

Mechanical

• Display Position Adjustments: Tilt

• Tilt Angle: ‑5.5° / +22°

• VESA Mounting Interface: 100 × 100 mm

Miscellaneous

• Security lock slot (Kensington type, cable sold separately)

• LED indicator

• VESA interface support

• Included Accessories: Stand, VESA screw cover, 1 × VGA cable

• Compliant Standards: Plug and Play, DDC/CI, RoHS, CECP, EDID compatible

Power

• Voltage Required: AC 120/230 V (50/60 Hz)

• Power Consumption (Operational): 11 W

• Power Consumption (Standby): 0.5 W

• Power Consumption (Sleep): 0.5 W

Software / System Requirements

• Drivers & Utilities

• Dell Display Manager
