Read MoreFully Automatic Water Level Controller Circuit Board With Dry Run Protection
Key Attributes
| Country of origin | India |
|---|---|
| Net Quantity | 1 unit |
| Manufacturer or packer name | KJMIndia |

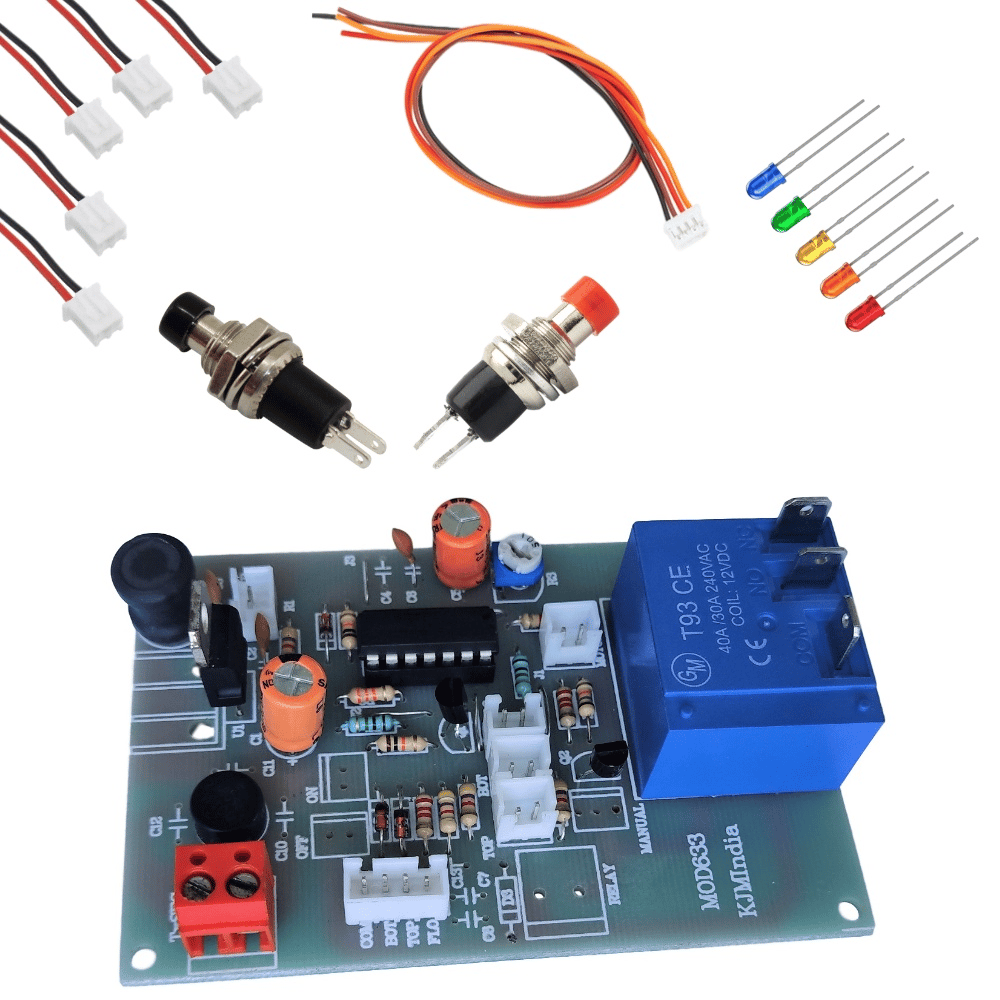

Package Includes:
- Ready-made board
- 12V, 40A Relay
- 5 Leds of different color of 3mm size
- 5 two pins RMC wires
- 1 four pin RMC wire for sensor
Mandatory Requirements:

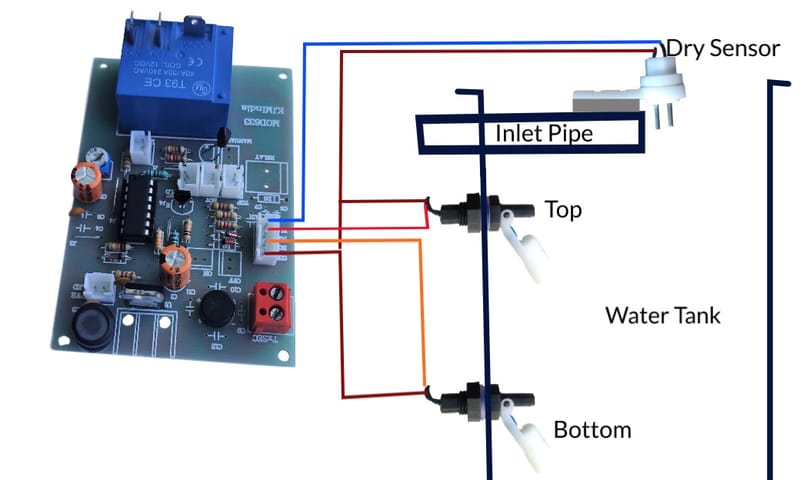

- You will need two magnetic float switches (normally open type) or 2 SS metal sensors and one dry run sensor.

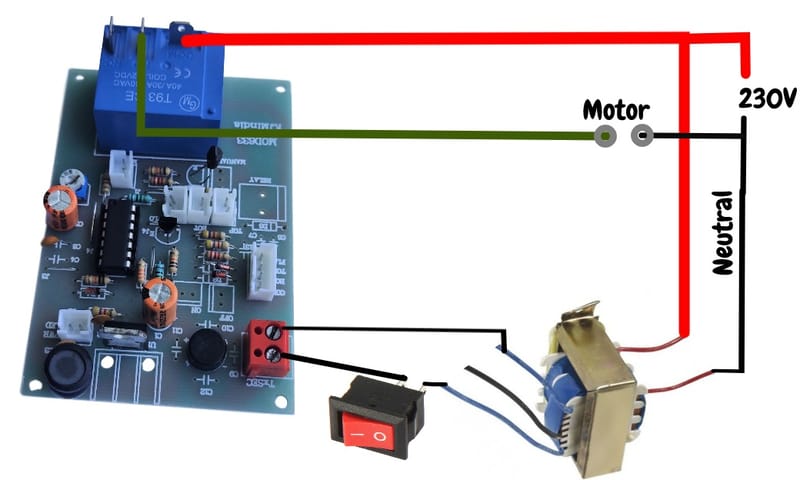

- Transformer to be used: 0 -12V or 0 – 15V or 0-18v or 7.5 – 0 – 7.5V or 9-0-9v, 1A
Board Size: Approx. 9.5 x 6.5 cm
| Country of origin | India |
|---|---|
| Common name | Circuit Board |
| Net Quantity | 1 unit |
| Included items | Ready-made board, one 4 pin wire, Five 2 pin wires, Five 3mm LEDs, 1 Normally closed push switch, 1 Normally open push switch. |
| Weight | 200 g |
| Package Dimension | 19L x 12W x 10H cm |
| Manufacturer or packer name | KJMIndia |
| Manufacturer or packer address | 2/75B, Irumpili, Ritapuram P.O, Kanyakumari District |
| Manufacturing Date | 07/2023 |
| Instructions | Please buy only if you know how to use it. Basic electronics knowledge is required to use this item. |
| contact details consumer care | KJMIndia, [email protected] |
